Dataflex Viewprime plus monitor desk mount for two monitors with desk clamp, black
Dual Monitor Mount

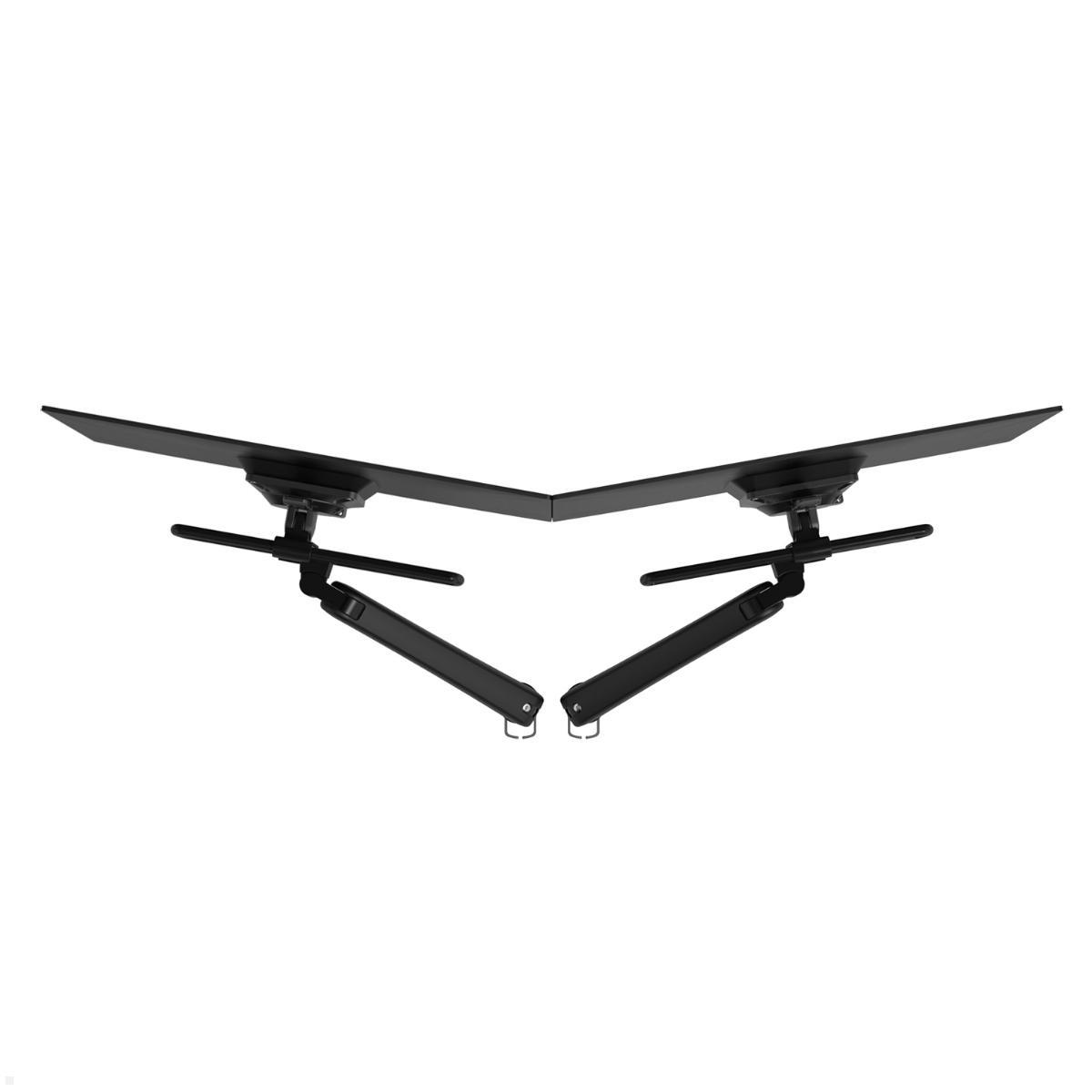

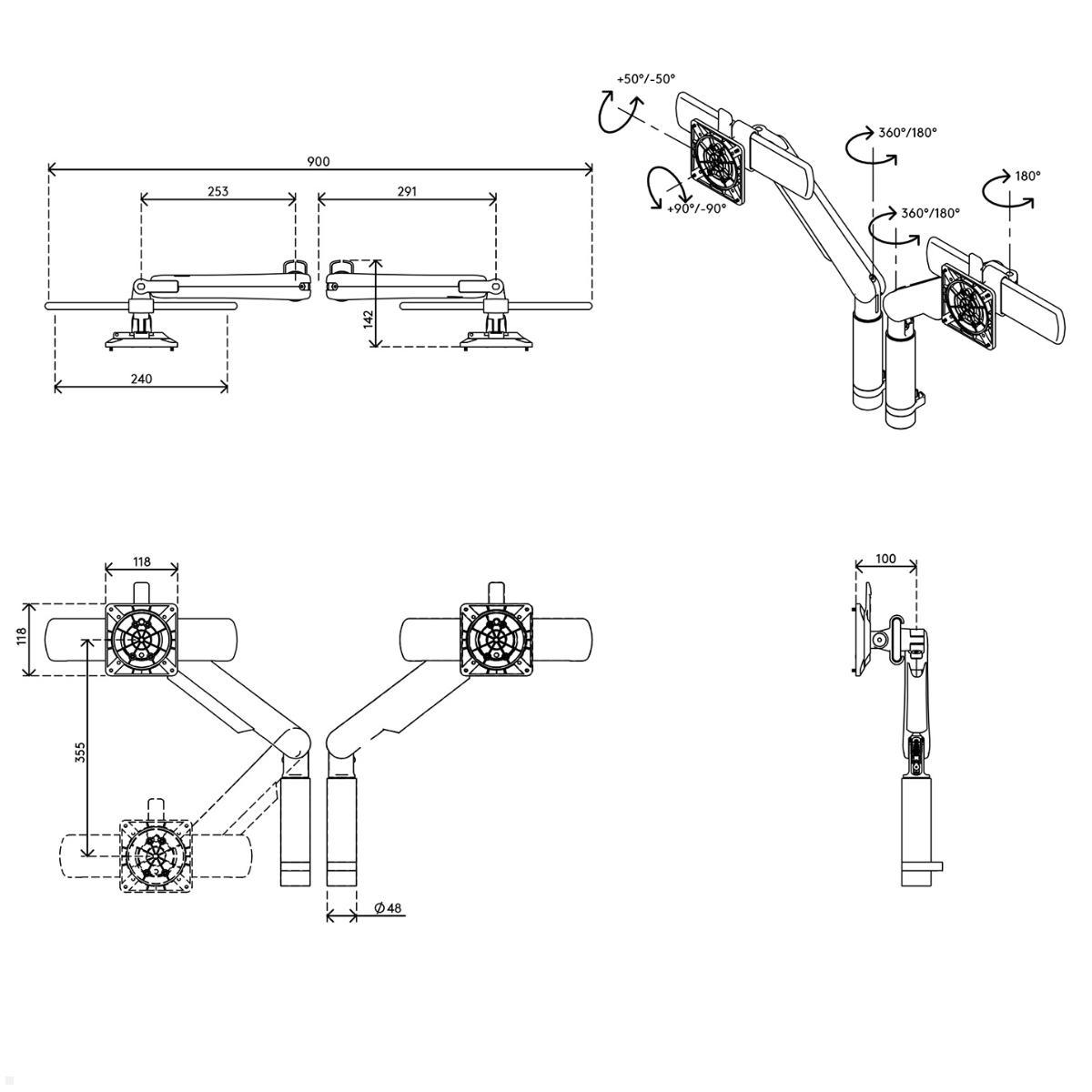

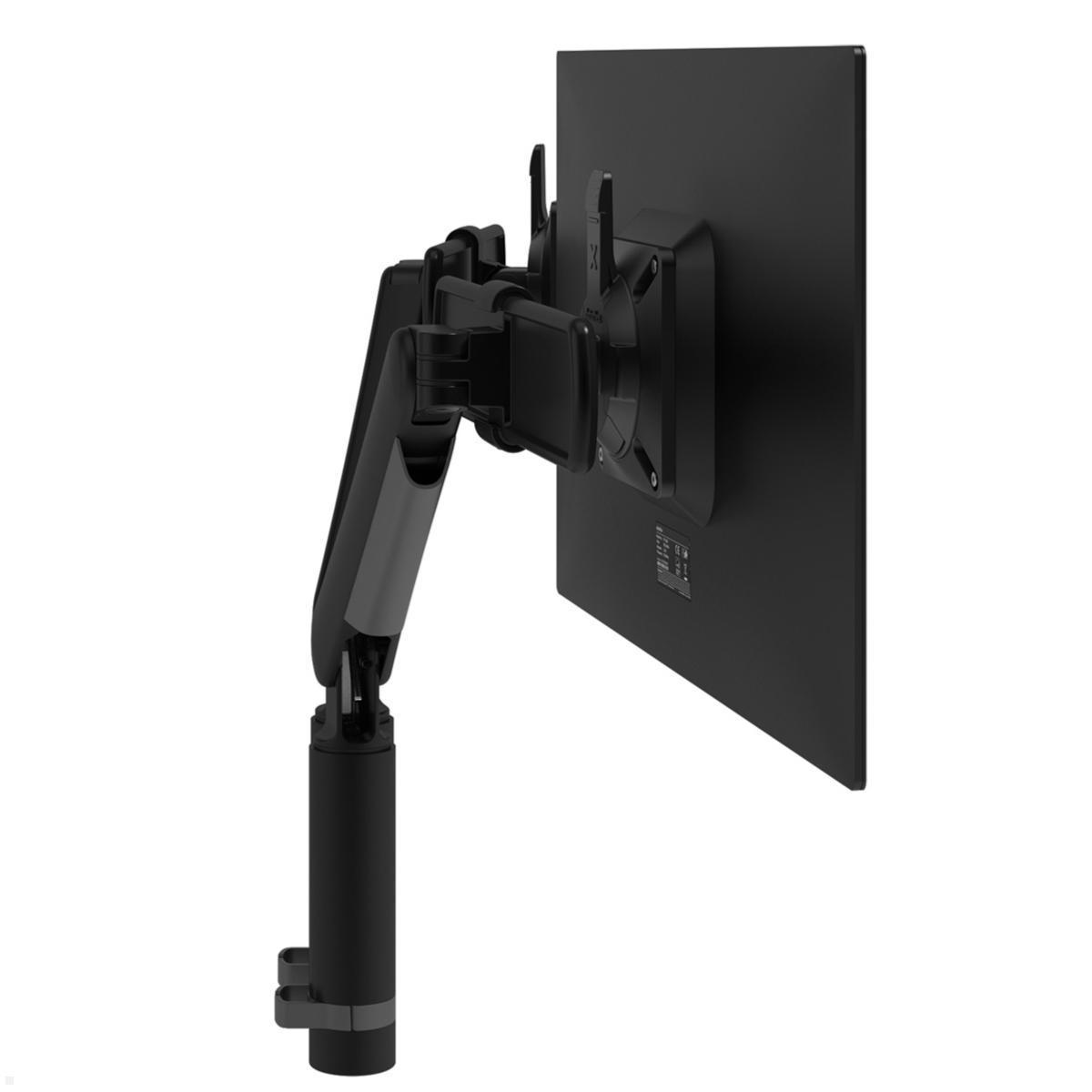

With the Viewprime Dual Monitor Mount (04.136), Dataflex offers a flexible desk mount in black that enables working with 2 monitors side by side. Each of the two monitor arms is height-adjustable by 355 mm and independently depth-adjustable by 357 mm. Using the smooth sliding rails, both screens can also be moved individually by 240 mm horizontally. The monitor desk mount for two monitors is tiltable, swivels and, thanks to the pivot function, is rotatable by 360°, allowing work in both landscape and portrait orientation.
The mount for 2 monitors has a load capacity of 8.5 kg per display and is suitable for screen sizes up to 37 inches. The VESA quick-release system allows easy attachment and removal of the screens. Integrated cable management ensures a tidy appearance at the workplace. The attachment of the dual monitor mount is done using the supplied Viewprime desk clamp for a desk thickness of 12 – 50 mm, which can be tightened quickly and easily.
Dataflex Viewprime Monitor Desk Mount for Two Monitors (65.213)
- Screen sizes: 19 - 37 inches
- Load capacity: 1.5 – 8.5 kg per monitor

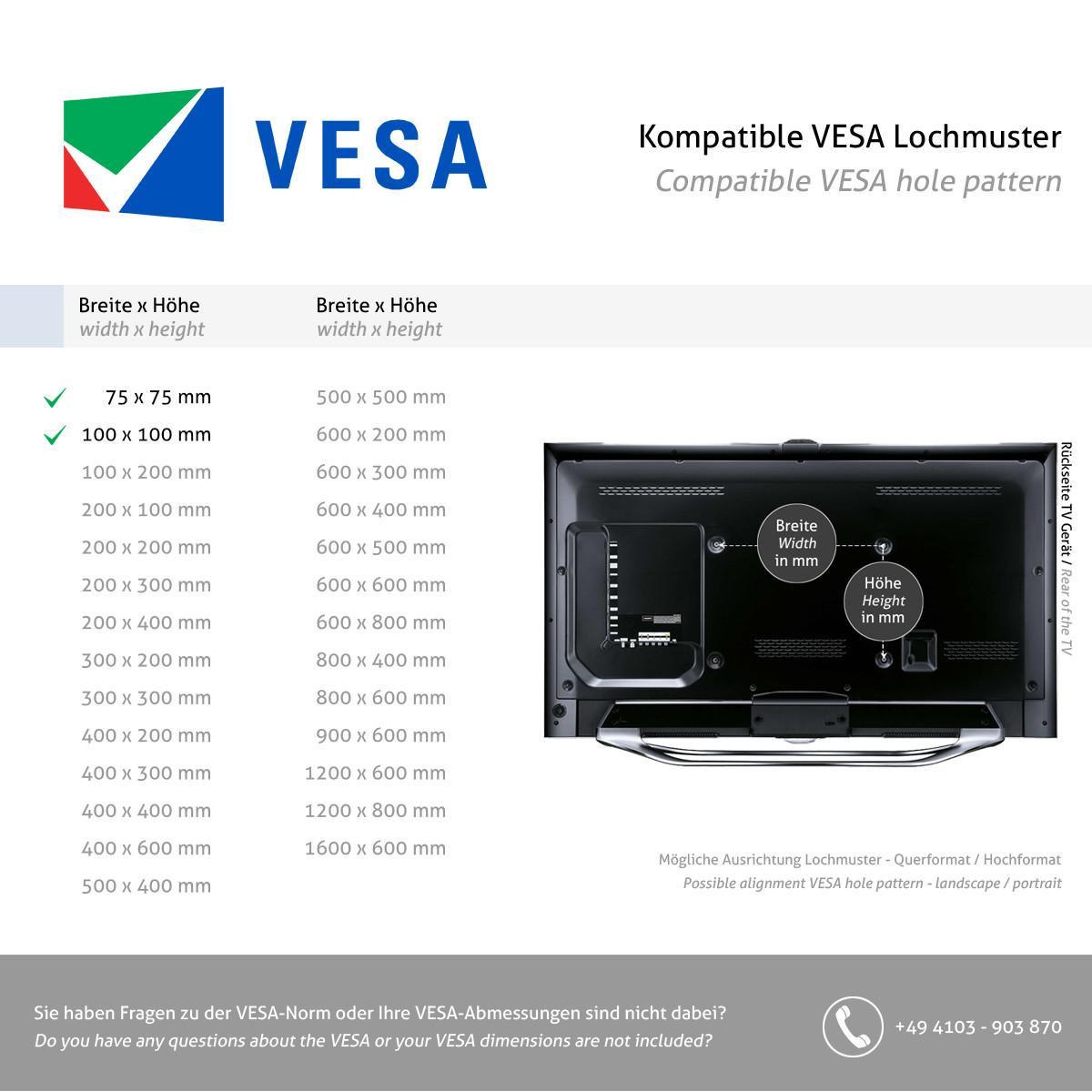

- VESA standard: 75x75, 100x100 mm
- Max. monitor height: 1034 mm
- Max. monitor width: 812 mm
- Dynamically height-adjustable by 355 mm
- Independent depth adjustment of 357 mm

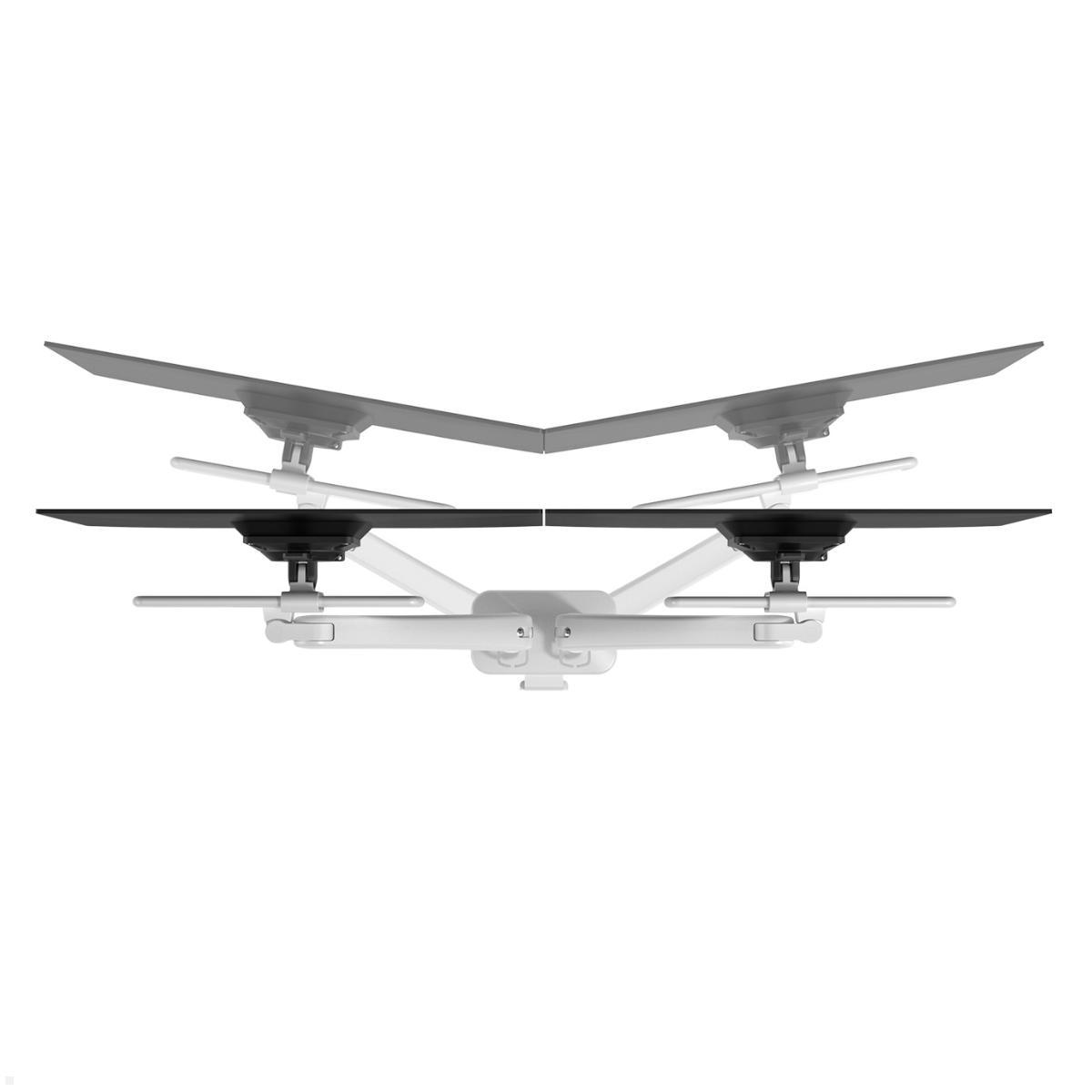

- Monitor glide function with 240 mm horizontal travel each
- Tension setting indicator for quick, precise installation
- Tilt: +50° / -50°
- Swivel: +90° / -90°
- Rotatable: 360° (Pivot)
- Monitor arms swivel 360 degrees, limit adjustable to 180 degrees
- With VESA quick-release system
- Delivery includes desk clamp
- Optional: drill-through / through-bolt mounting
- Integrated cable management
- Warranty: 5 years
- Color: Black

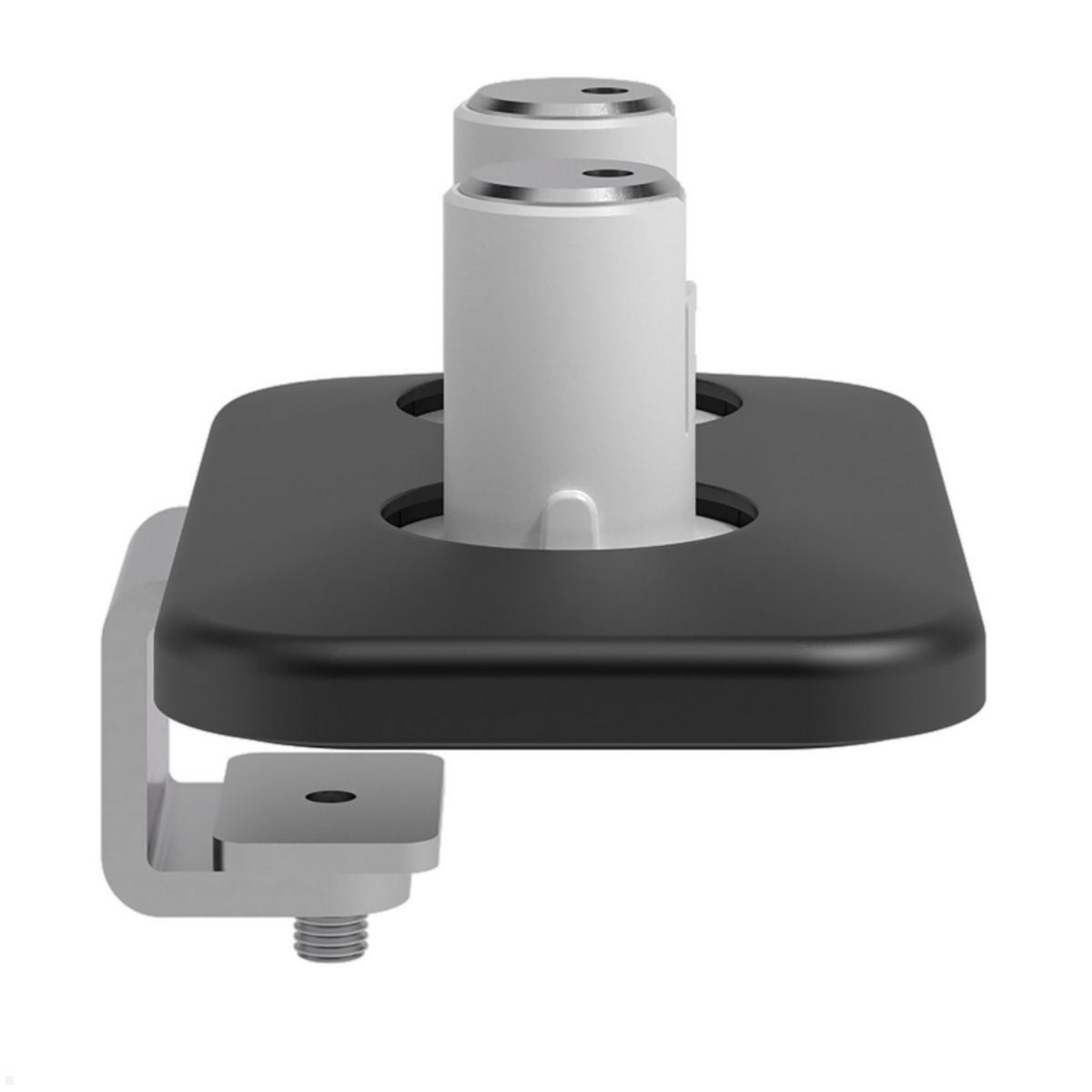

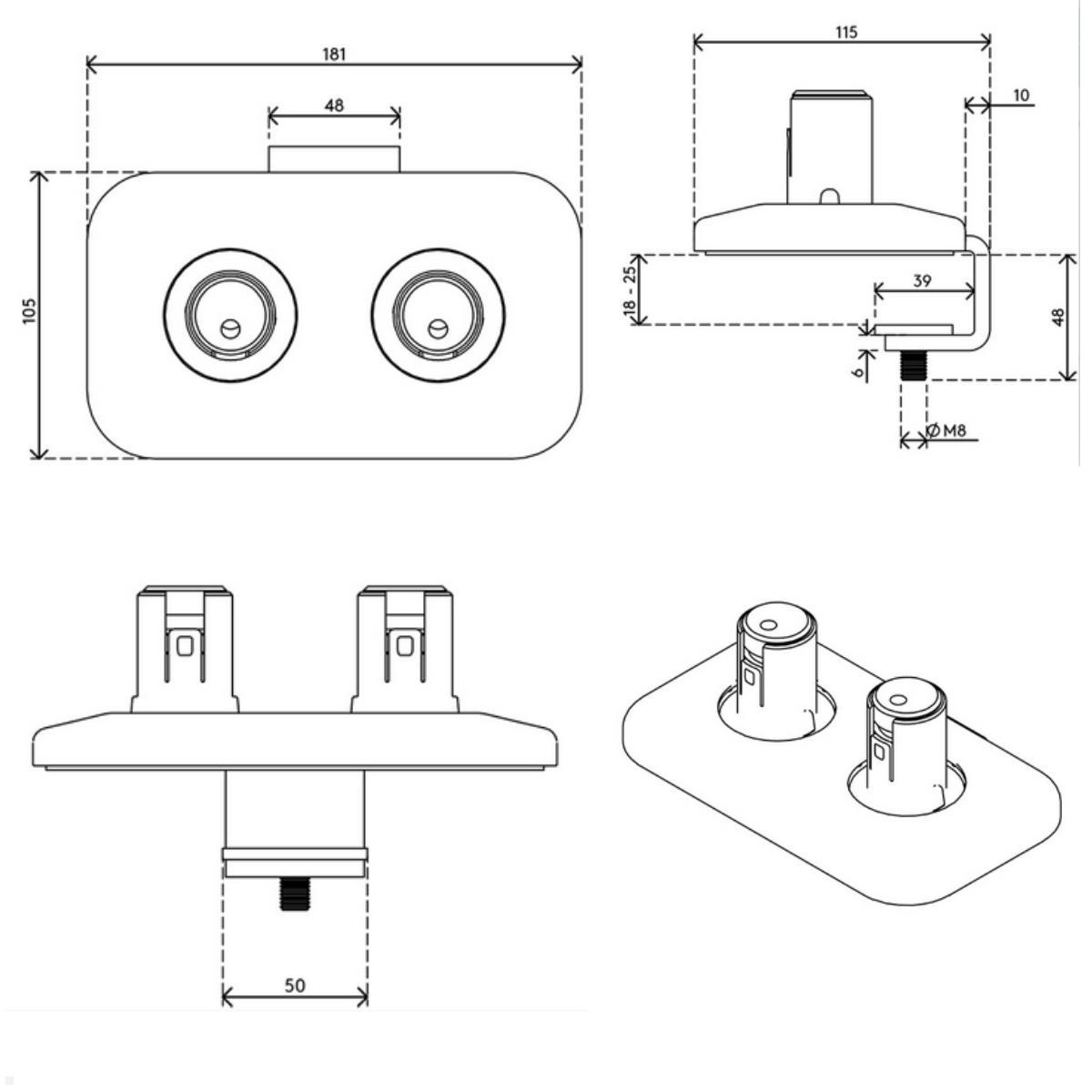

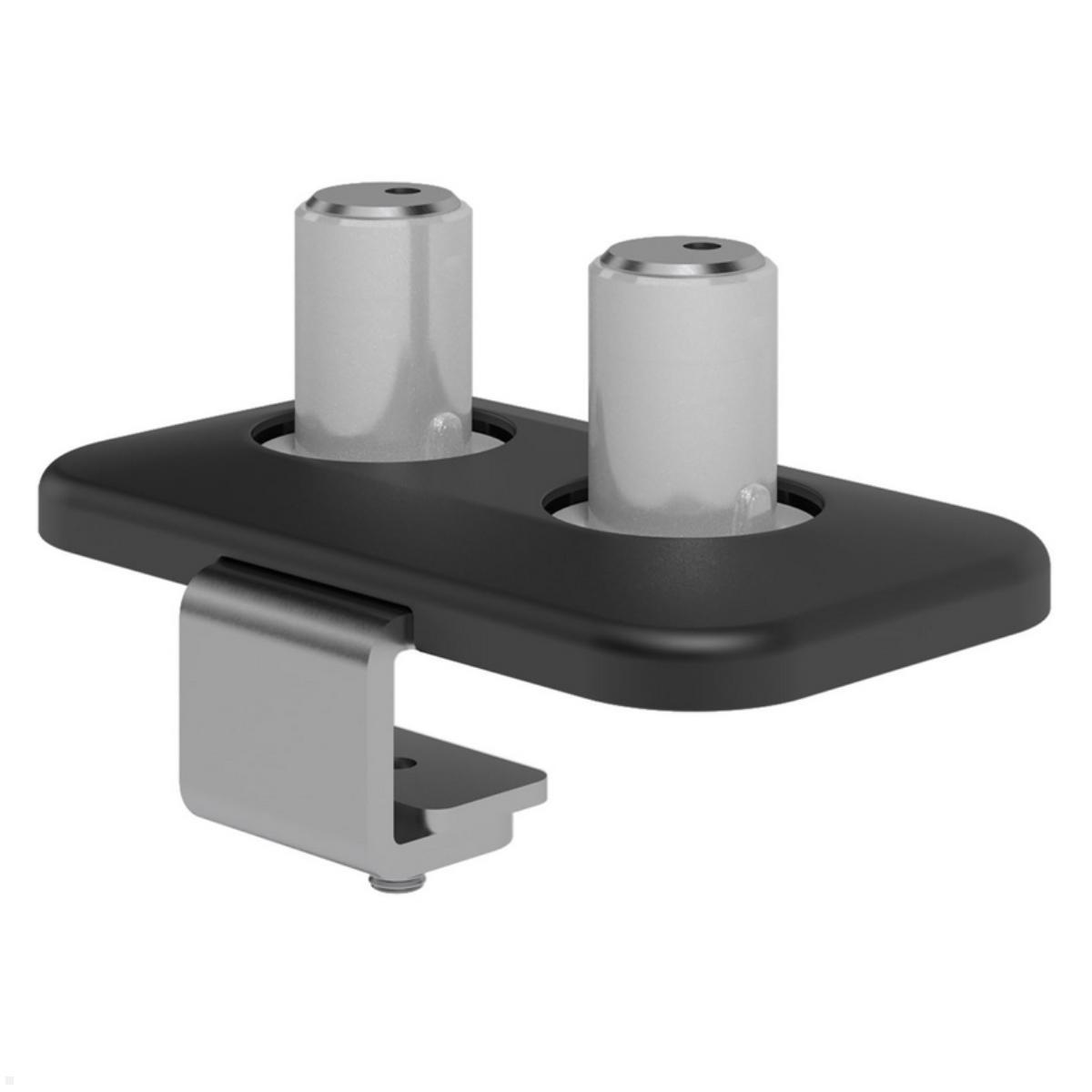

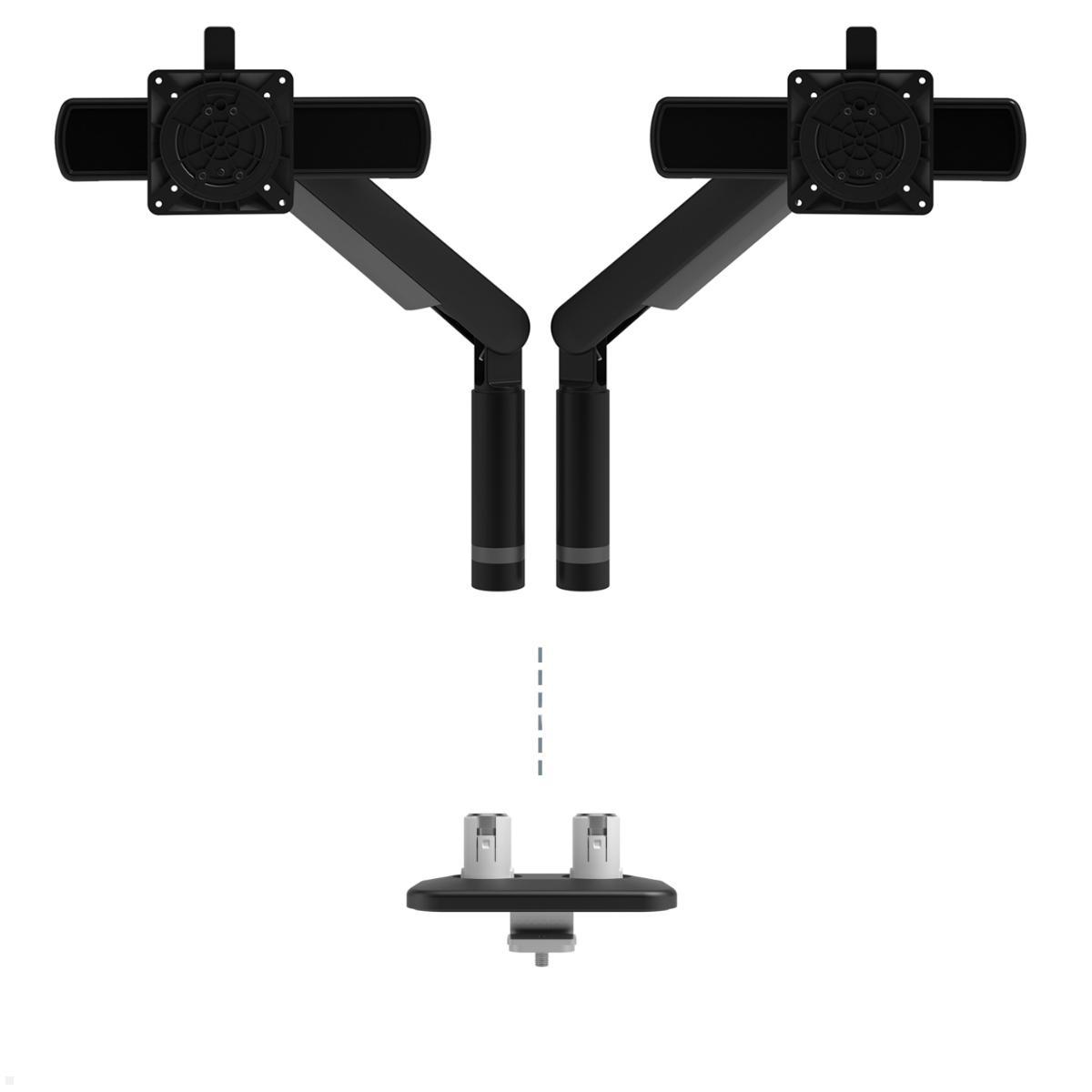

Dataflex Viewprime Desk Clamp (65.943)
- For desk mounting of the Dataflex Viewprime Dual Monitor Mount
- Suitable for a desktop thickness of 18 – 25 mm
- Color: Black
Does your monitor or display fit the monitor mount?
We are happy to check whether your monitor is suitable for this Dataflex Viewprime 04.136 Dual Monitor Mount. Simply provide your model (manufacturer + model number) in the comments field at the end of the ordering process. We will then check for you whether the monitor or display fits the mount and, if not, will contact you.
VESA Standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Minimum weight: | 1,5 |
| Capacity: | 1,5 - 8,5 kg per monitor |
| Tilt: | +50°/-50° |
| Rotate: | 90° |
| Height range (mm): | 355 |
| Pivot: | 90° |
| Swivelling range: | +90°/-90° |
| Length of the swivel arm: | 353 |
| Screen size: | 19 - 37" |
| Thickness of table (mm): | 18 - 25 mm |
| Depth of the bracket: | 391 mm |
| Special features: | Delivery includes desk clamp |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 687 x 467 x 94|185 x 110 x 110 |
| Scope of delivery: | 1x Viewprime dual monitor mount (65.213), 1x Viewprime desk clamp (65.923) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 35 inch, 37 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp |
| Multi-monitor mount: | 2 monitors side by side |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
