Dataflex Viewlite Link USB-C docking station desk clamp, white (58.810)
Docking station with USB-C

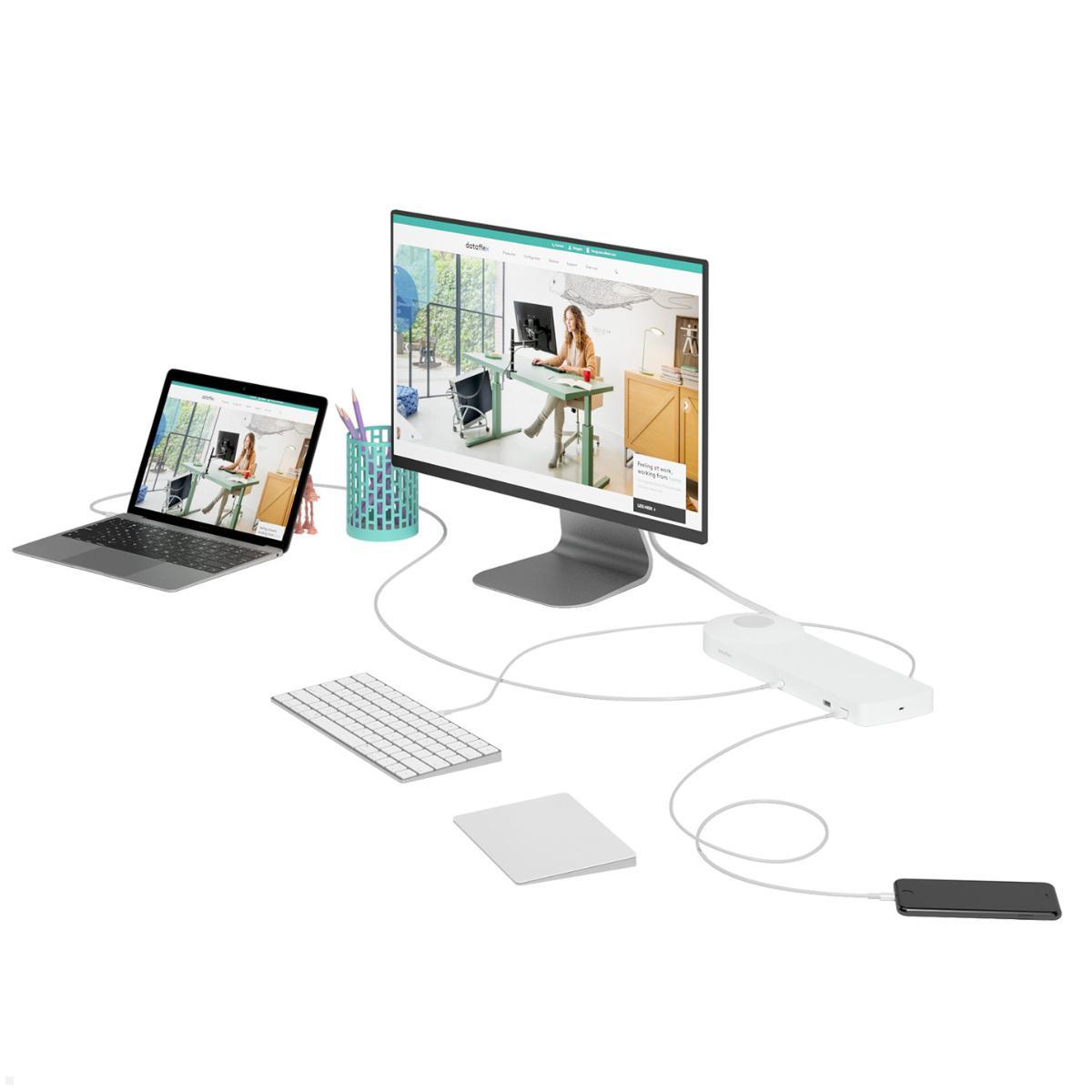

Docking stations are ideal for desk sharing concepts, where the existing workstations in the office are alternately occupied by different employees, and facilitate work with laptops / notebooks. The docking station with USB-C from Dataflex has a USB-C 3.1 port with 60 W, at which the laptop can be charged easily while working. Furthermore, the Viewlite Link docking station is equipped with 2 HDMI ports for monitors as well as a LAN jack. Up to 4 USB-A ports are available for additional devices such as a mouse, keyboard or smartphone, two of which enable Fast Charging. Thanks to Plug & Play, no additional software is required for use. The docking station can be mounted either with the included desk clamp or via bolt-through desk mount.
Key features Dataflex Viewlite Link USB-C docking station with desk clamp, white (58.810)

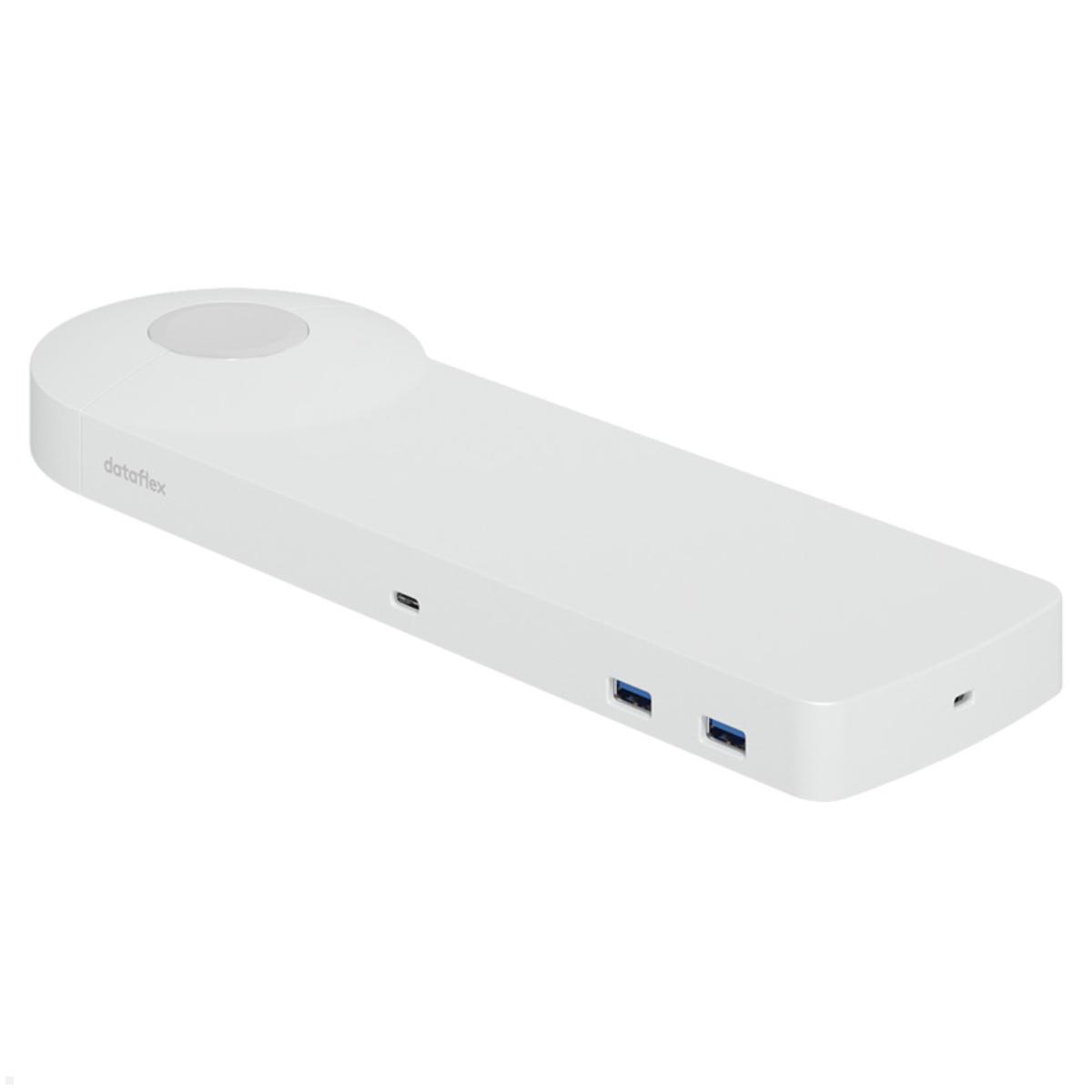

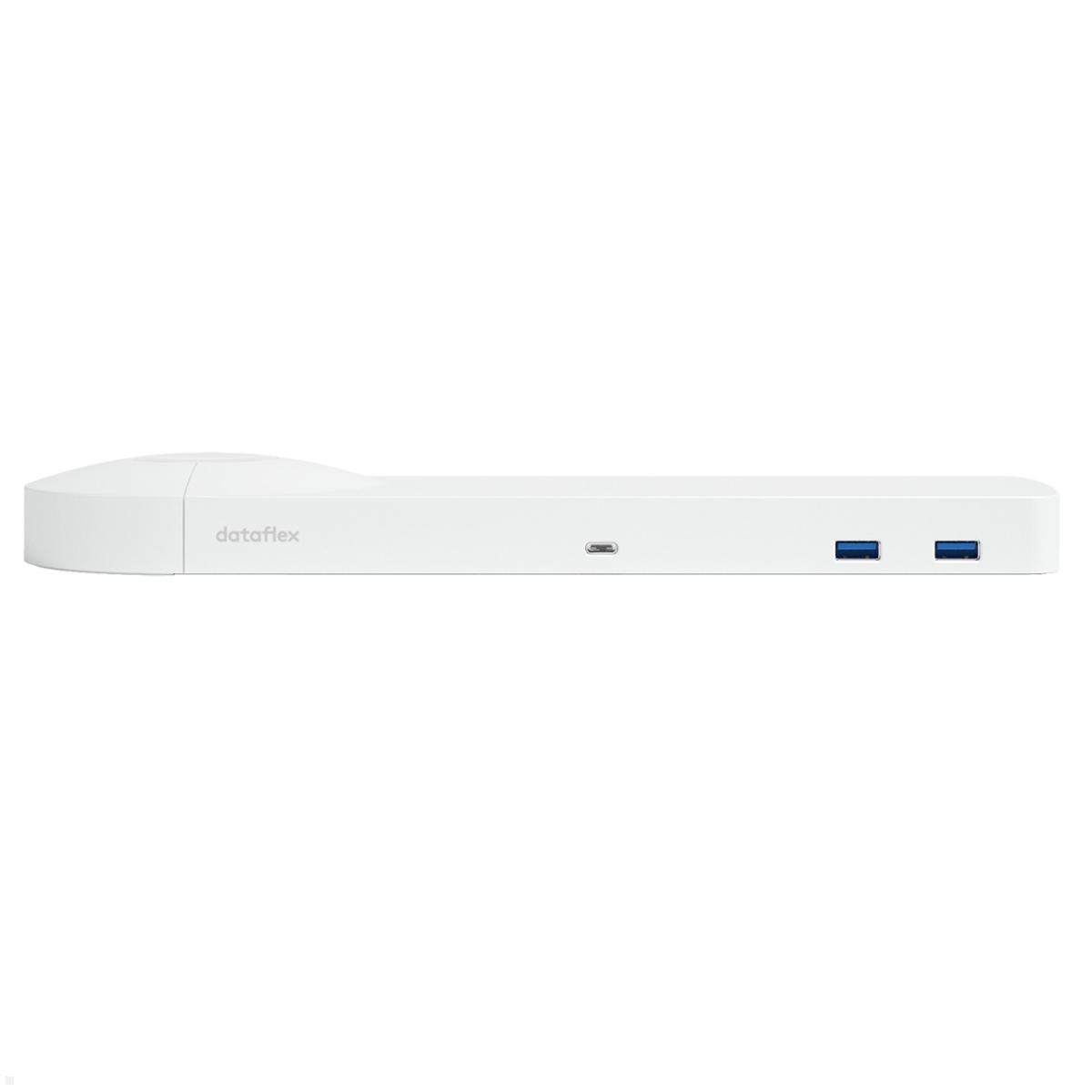

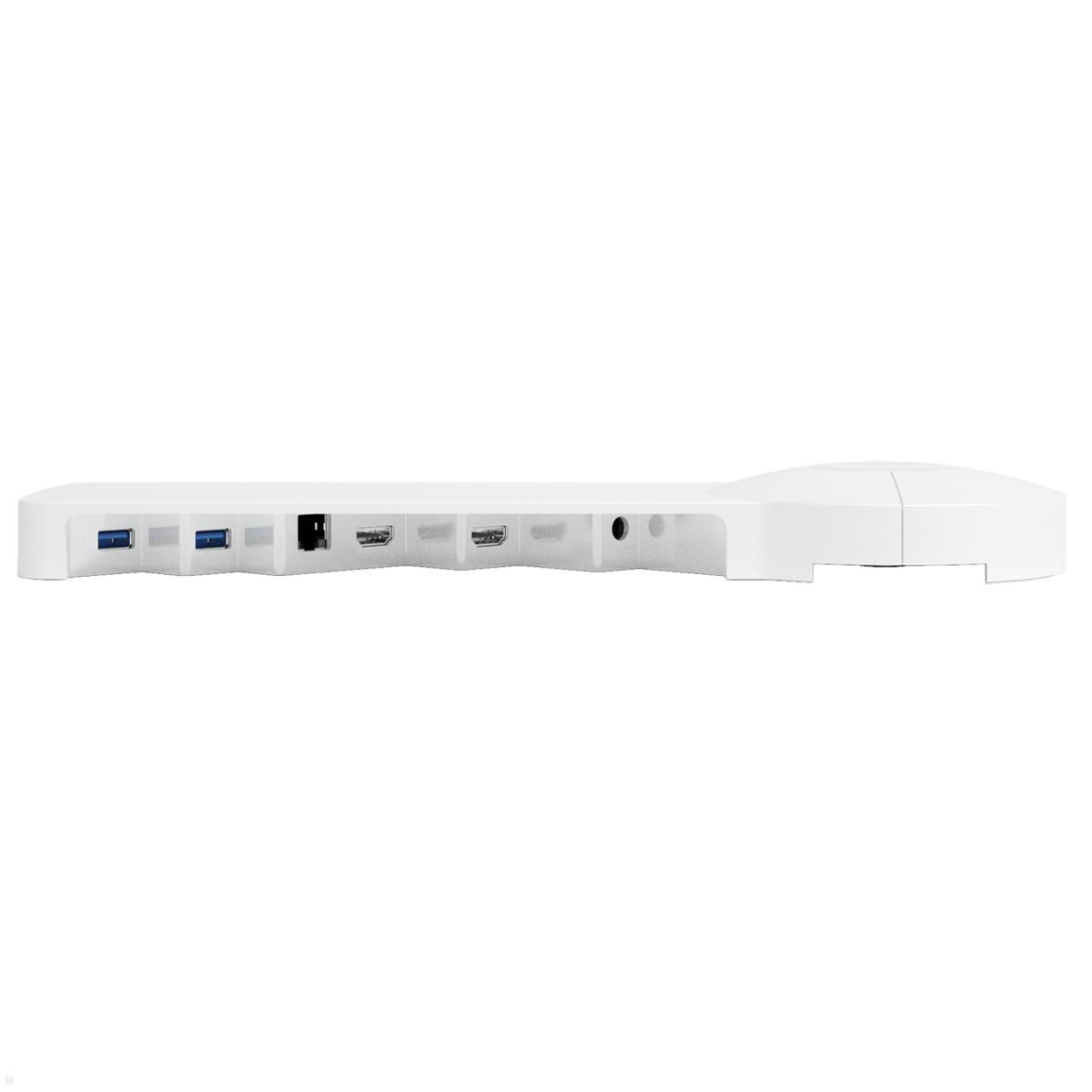

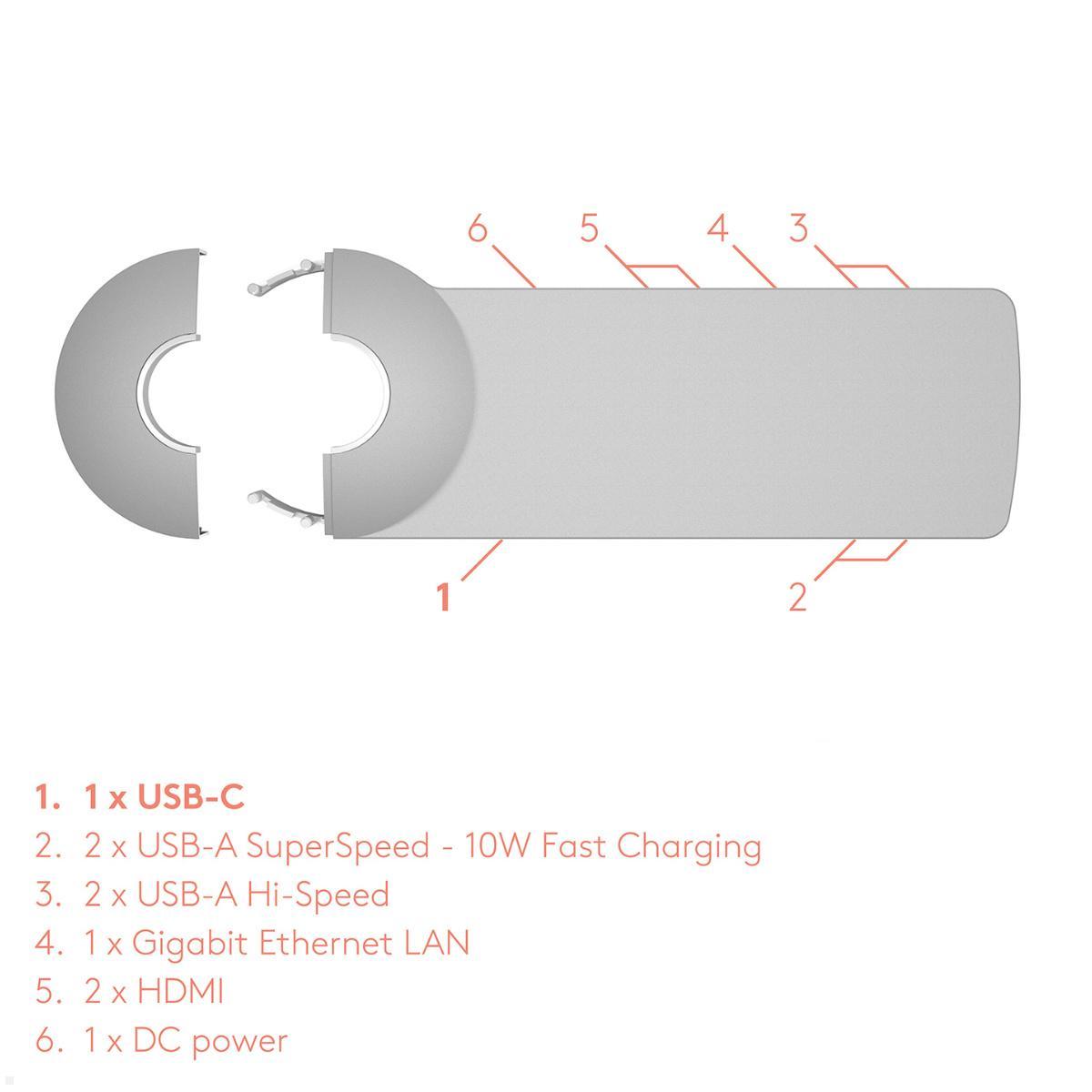

- Connections:

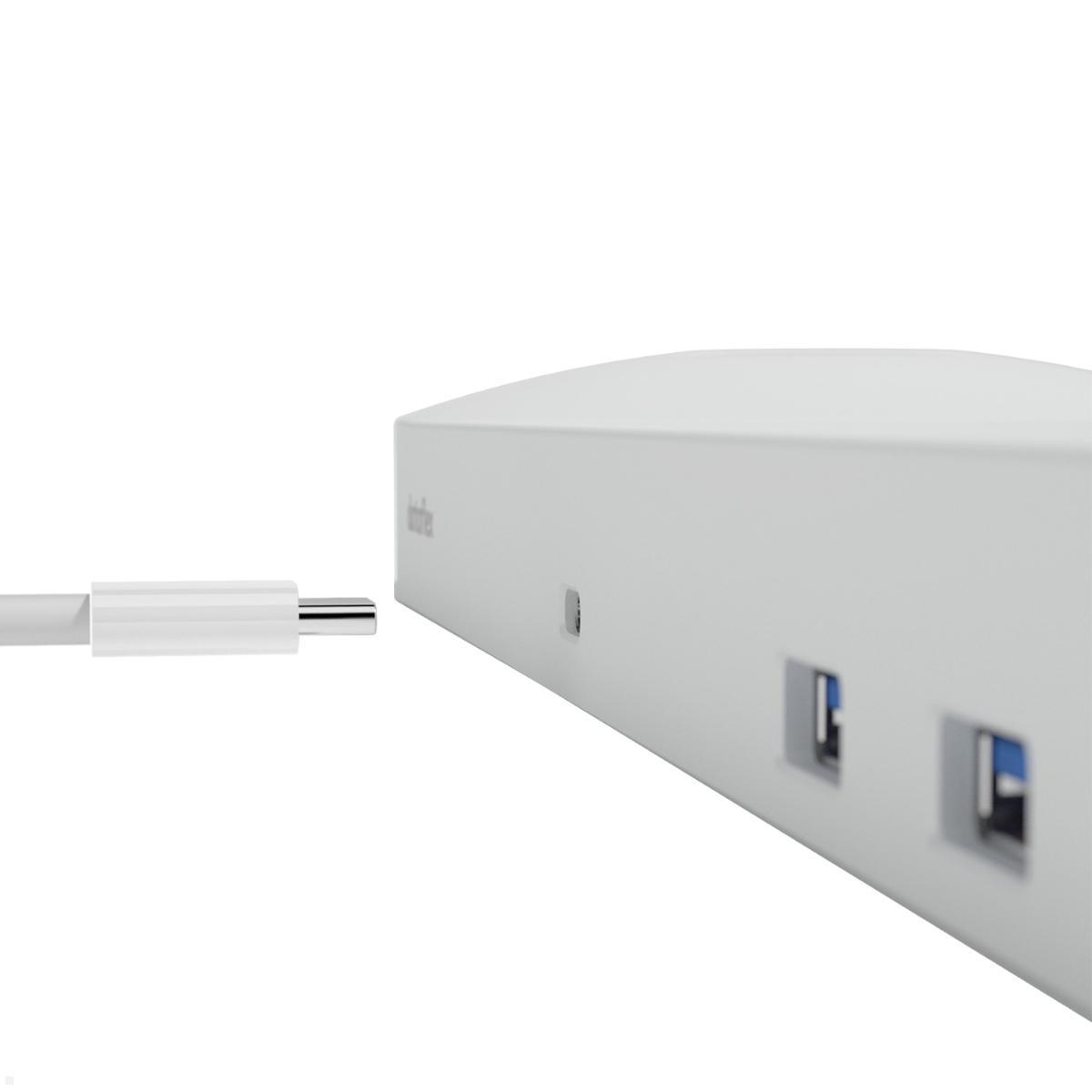

- 1x USB-C 3.1 (60 W)
- 2x USB-A 3.1 SuperSpeed (10 W Fast Charging)
- 2x USB-A 2.0 Hi-Speed (2.5 W)
- 1x Gigabit Ethernet LAN RJ45
- 2x HDMI (4K)
- 1x DC power (90 W)
- Plug & Play, no additional software required
- Laptop can be charged while working (max. 60 W)
- 2 monitors can be connected via HDMI (macOS does not support MST)
- 4 peripherals connectable via USB-A (mouse, keyboard, smartphone etc.)
- Thunderbolt 3 compatible
- Switch between dual 4K mode (max. resolution 4096 x 2160) and SuperSpeed mode (max. USB speed: 5 Gbit/s)
- Slender aluminum body

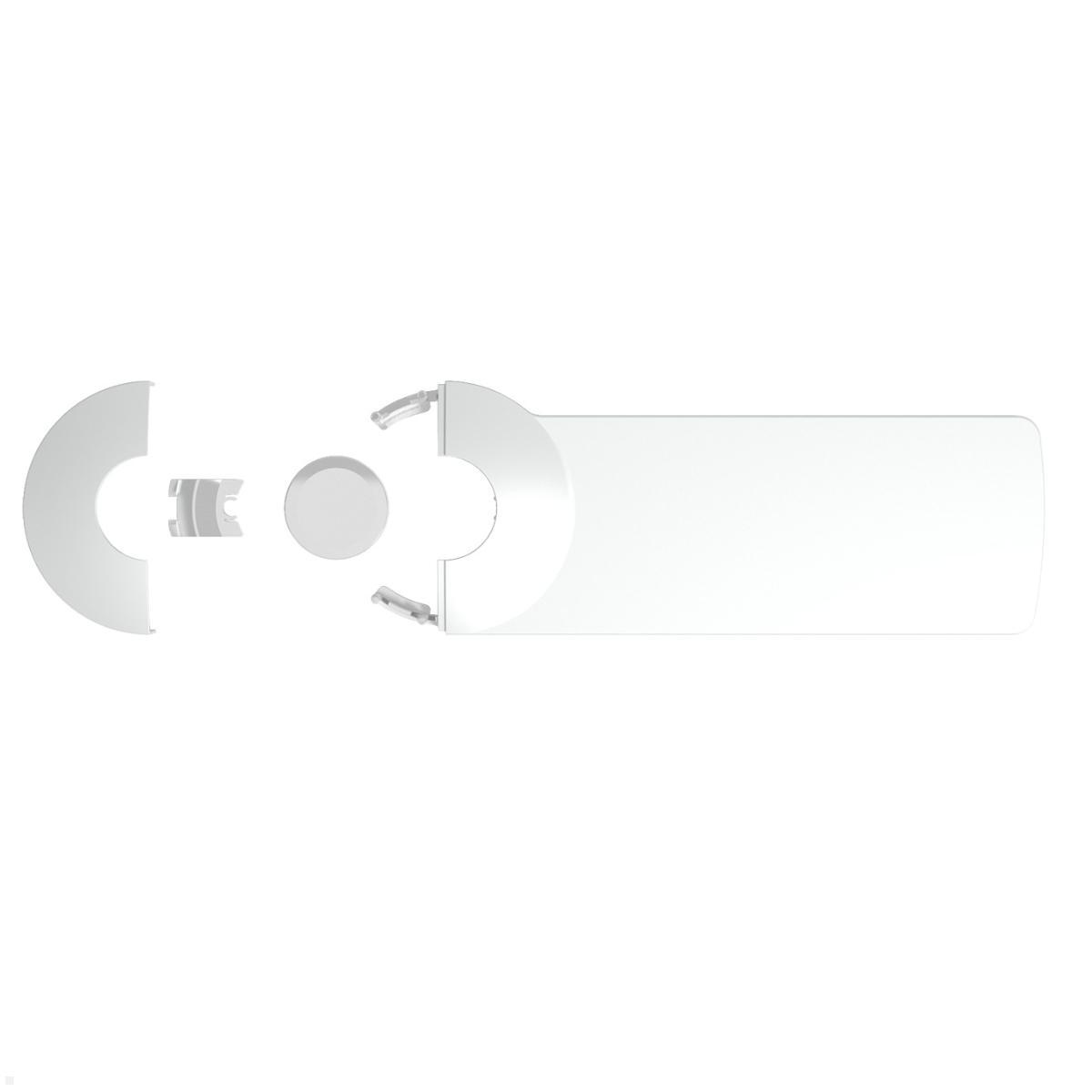

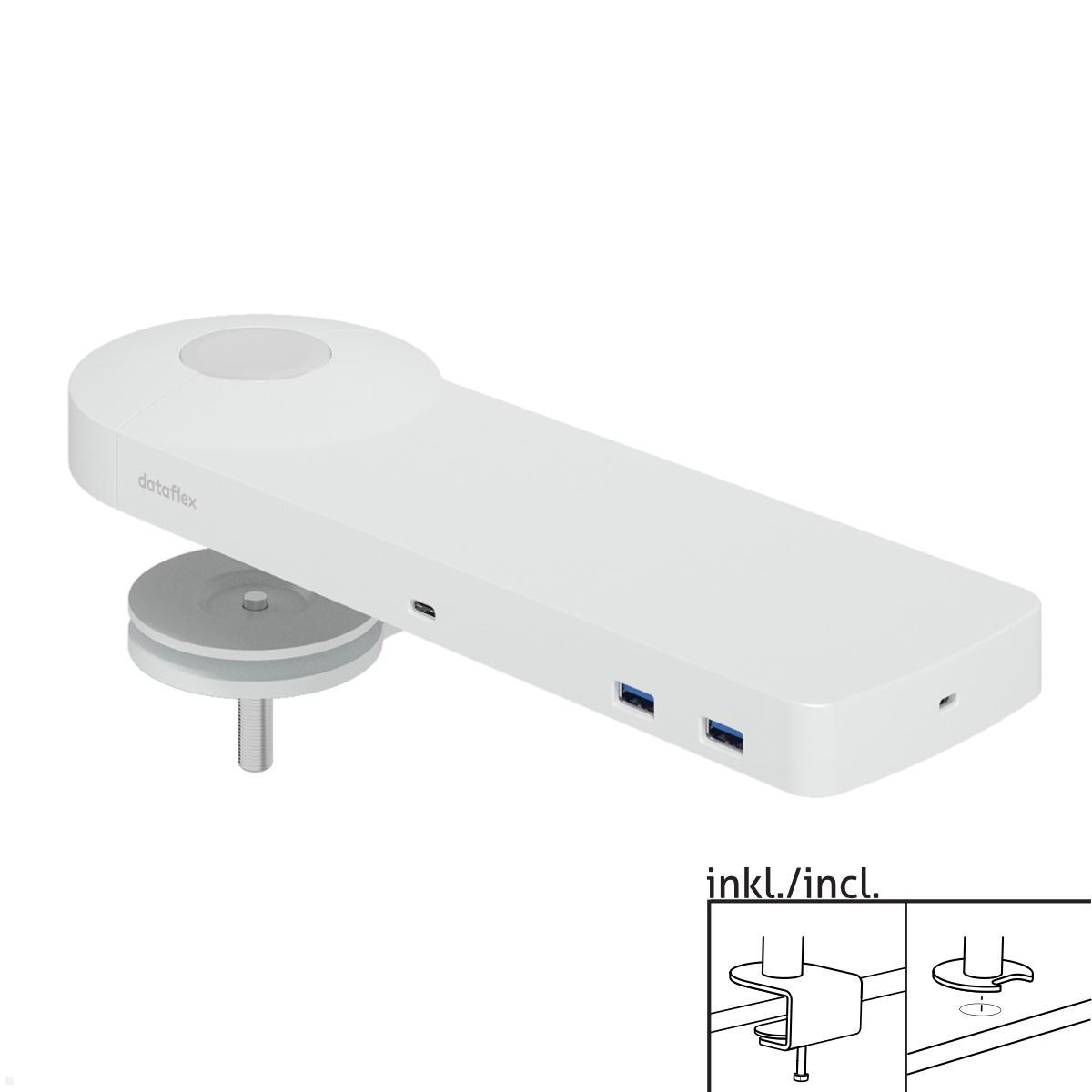

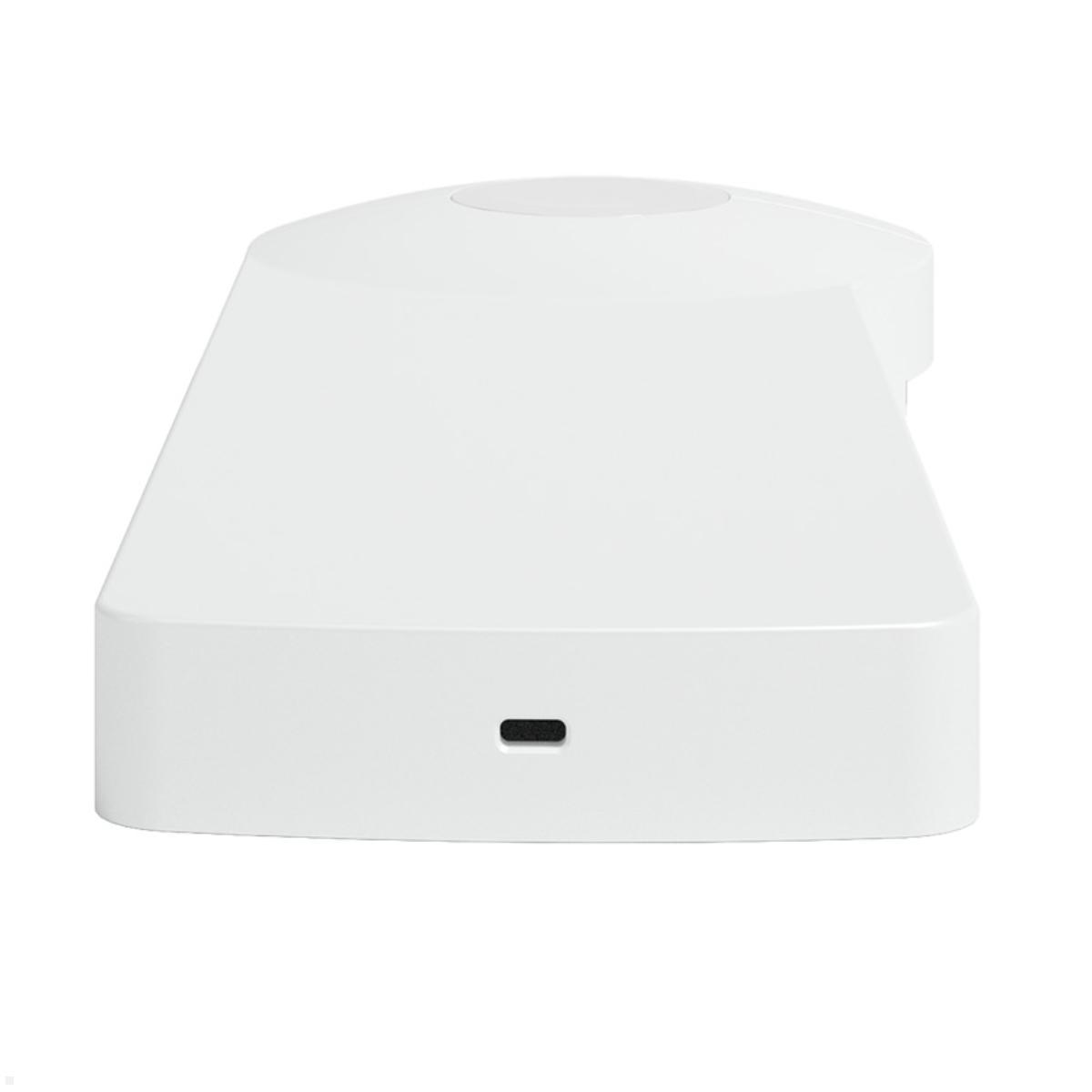

- Mounting via desk clamp or bolt-through desk mount
- Suitable for desktop thickness of 5 – 40 mm (desk clamp) / 5 – 50 mm (bolt-through)
- Incl. power adapter, power cord and USB-C cable
- Dimensions (WxHxD): 315 x 32 x 110 mm
- Warranty: 2 years
- Finish: white
| Product sheet: |  [pdf] |
|---|---|

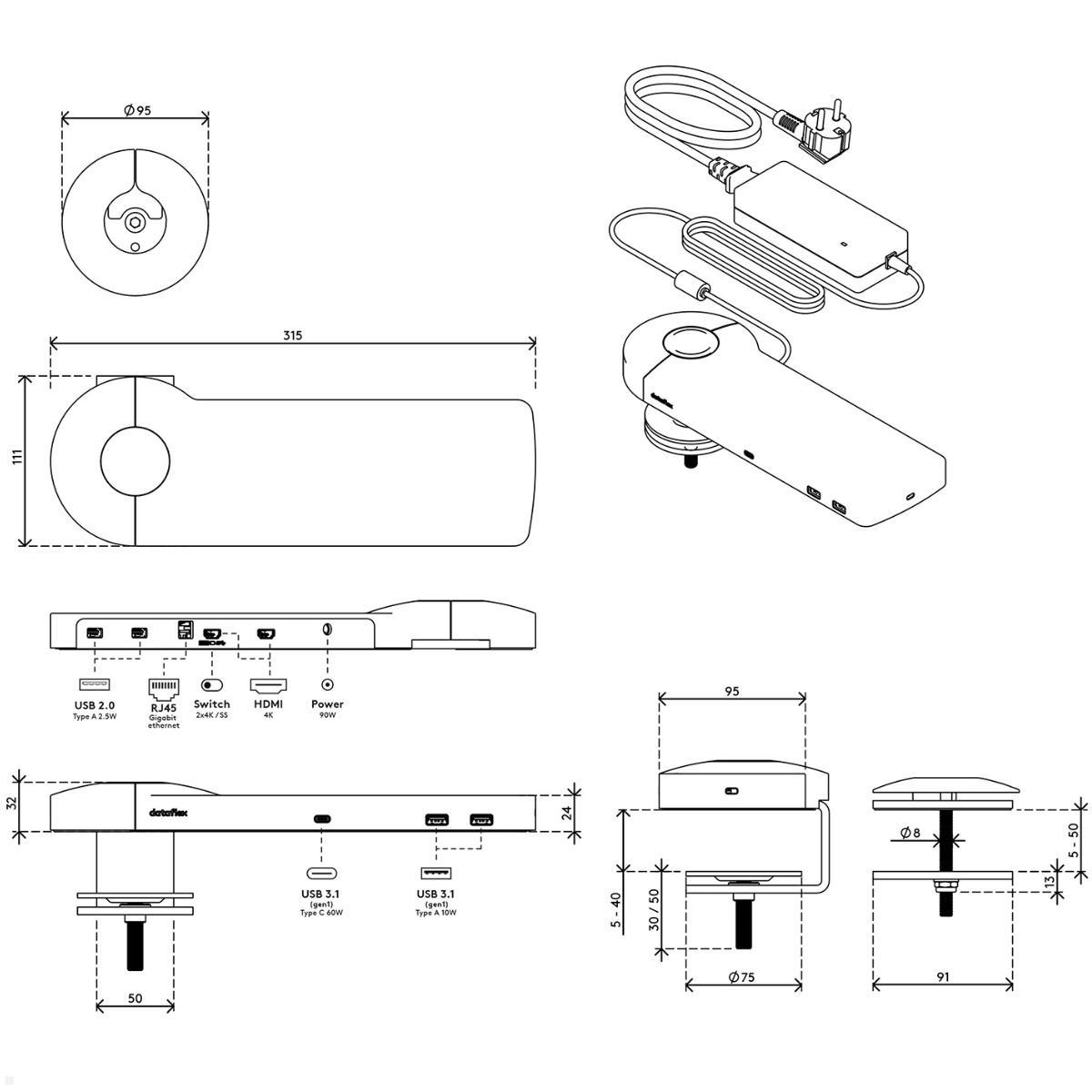

| Technical drawing: | [pdf] |
| 3D CAD Modell: |  [dwg] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Packaging dimensions (LxWxH in mm): | 540 x 180 x 120 |
| Scope of delivery: | 1x Viewlite Link docking station | 1x power adapter | 1x power cord | 1x USB-C cable | | 1x desk clamp | 1x bolt-through desk mount | Installation material |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| color: | Weiß |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
