EOL - Dataflex Viewmate Style Notebookarm 592

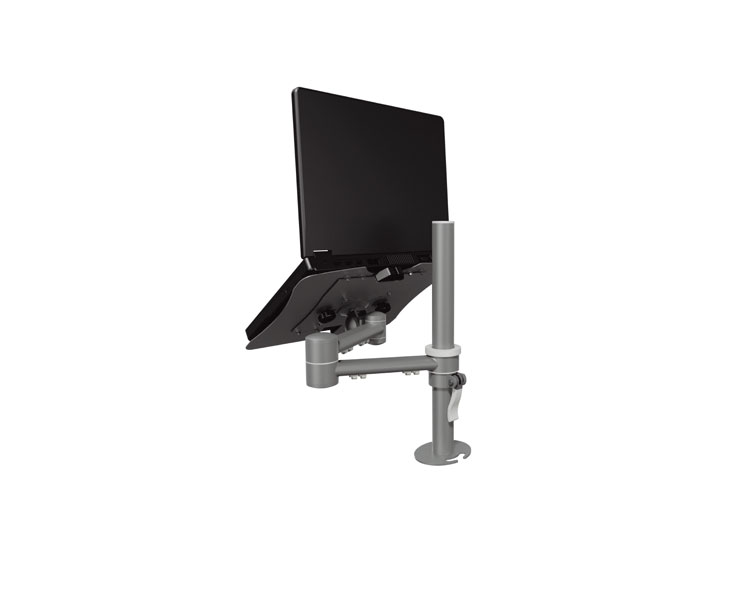

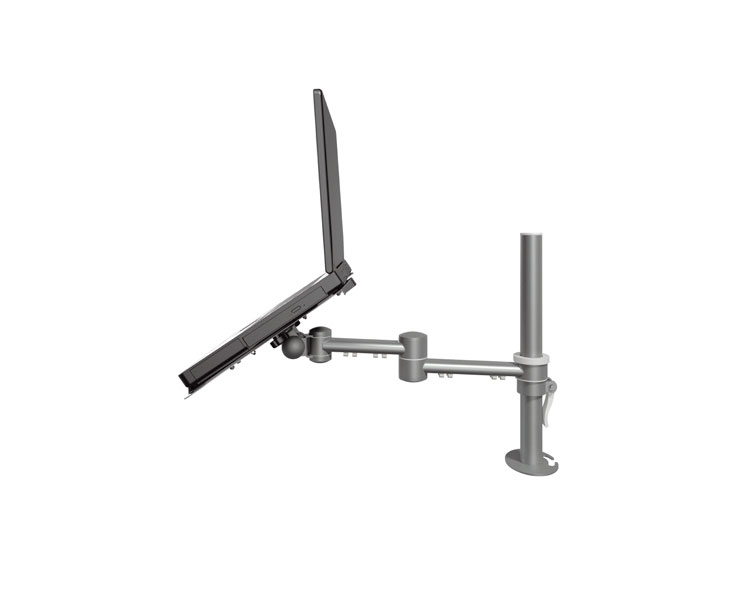

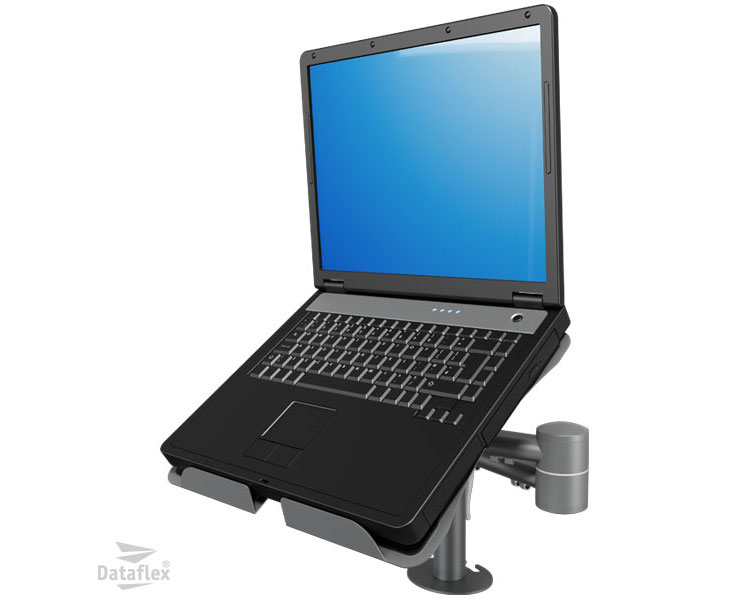

Dataflex ViewMate Style Notebookarm 592
Dataflex ViewMate Style Notebookarm 592
With the ViewMate Style Notebook arm, one can create an ergonomical height and depth adjustable workplace for notebook with the greatest ease. The width adjustable platform is fitted with anti skid rubber to keep both smaller (14") and larger (17") in place. Comes with both bolt through desk and desk clamp.

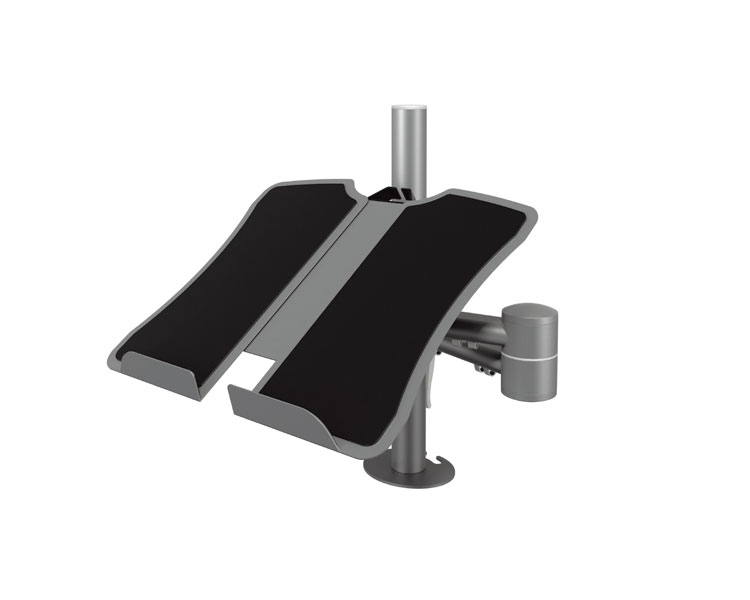

- Width adjustable notebook platform (300-365mm)
- For notebooks up to 17"
- Perfect screen angle can be achieved through tilt mechanism
- With cable management clips
- Articulating two pivot arm
- Total arm reach 480mm
- Depth adjustable
- Height adjustable
- Rotate 360°, tilt 180°, lateral 180°
- Max. weight capacity of 10kg/notebook
- Post height 400mm
- Post diameter 38mm
- Quick lock/release post bracket
- Comes with both bolt through desk (max. 70mm) and desk clamp (max. 60mm)
| Product sheet: |  [pdf, 256 kb] |
|---|---|
| Technical drawing: | [pdf, 60 kb] |
| Warning/safety instructions: | [pdf] |
| Capacity: | 10 kg |
| Tilt: | 180° |
| Height range (mm): | 400 |
| Swivelling range: | 180° |
| Suitable for: | Notebooks up to 17" |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Mounting type: | Desk mount |
| color: | Silber |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
