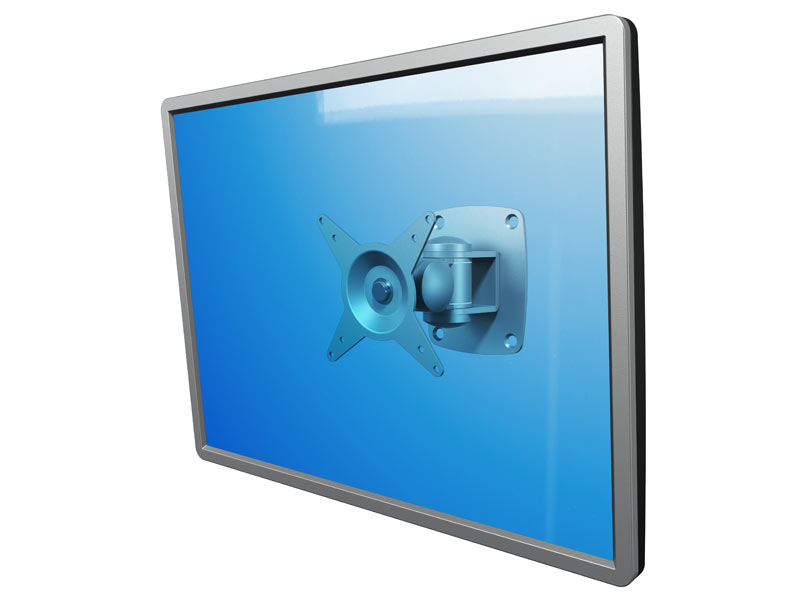

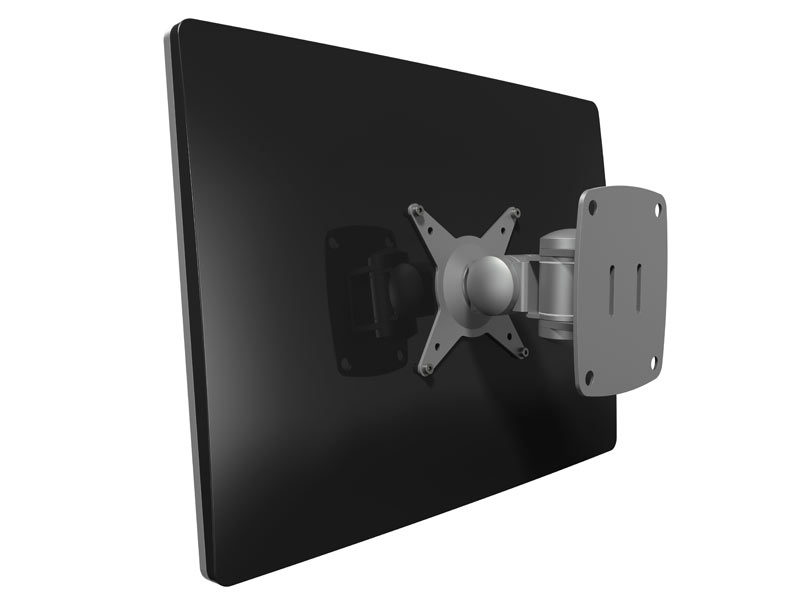

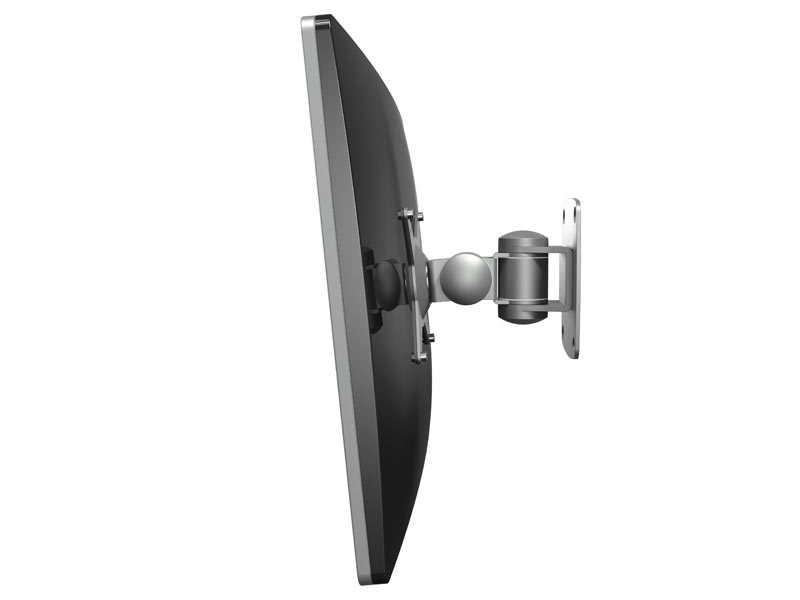

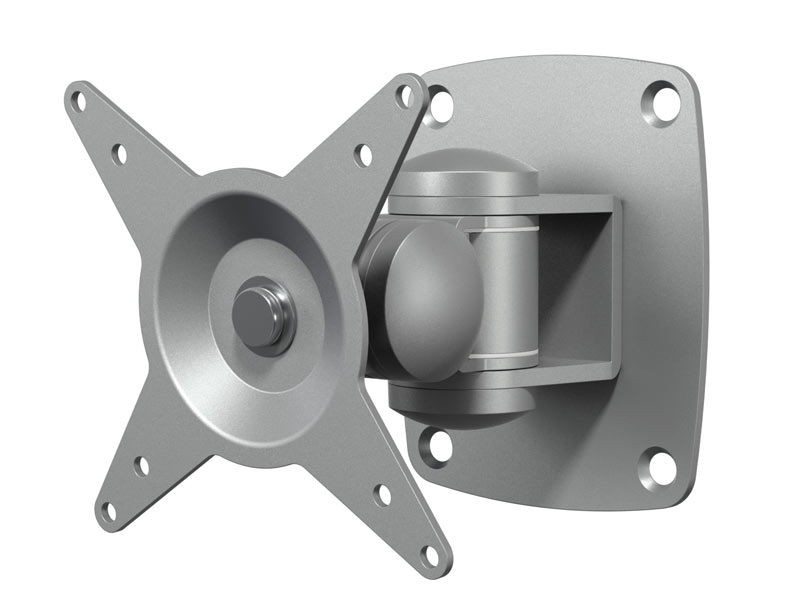

Dataflex ViewMate Style Monitor Arm 542, silver
Dataflex ViewMate Style Monitor Arm 542, silver with a capacity of 15 kg.
Dataflex ViewMate Style Monitor Arm 542, silver
Strong, efficient and affordable and good looking. This simple flat screen monitor wallmount can hold any VESA MIS-D: 75 x 75/100 x 100mm supporting monitor up to 15kg This wall mount enables its users to rotate, swivel and tilt the monitor in a position which suits them best.
- Mounts single monitor to wall
- Rotate 360°, tilt 180°, lateral 180°
- VESA: MIS-D 75 x 75/100 x 100mm compatible
- Max. weight capacity of 15kg (up to 24"/24"W)
- With integrated wallmount
- Monitor distance from wall 119mm
- Comes with all necessary fasteners
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 223 kb] |
|---|---|
| Technical drawing: | [pdf, 71 kb] |
| Installation manual: | [pdf, 359 kb] |
| Warning/safety instructions: | [pdf] |
| Capacity: | 15 kg |
| Tilt: | 180° |
| Rotate: | 90° |
| Pivot: | 90° |
| Swivelling range: | 180° |
| Screen size: | max. 24" |
| VESA Standard: | 75x75, 100x100 (www.vesa-standard.com) |
| Accessories: | Dataflex Universal Keyboard Bracket 582 (51.582) Dataflex Universal VESA Adapter 043 (51.043) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Mounting type: | wall mount |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
