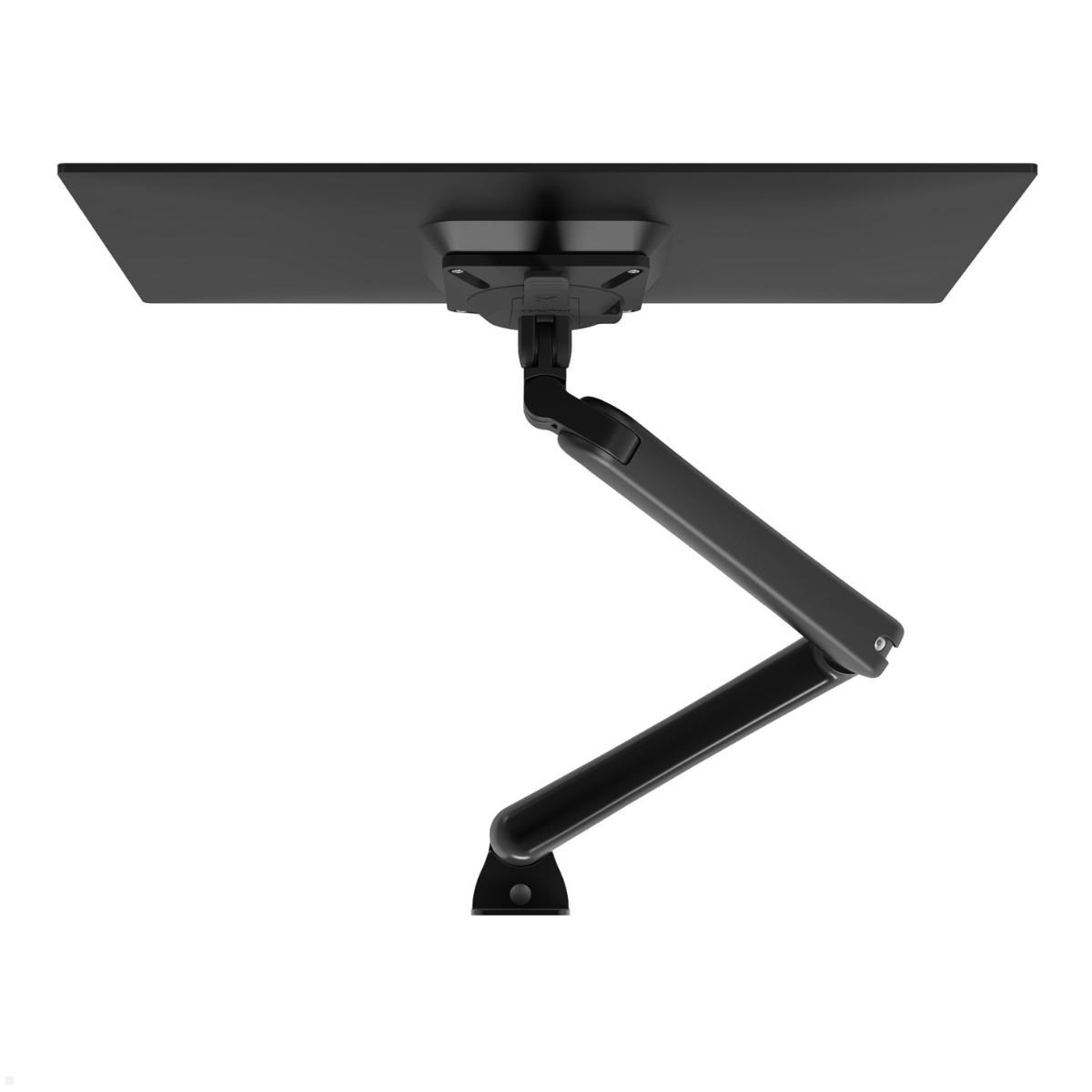

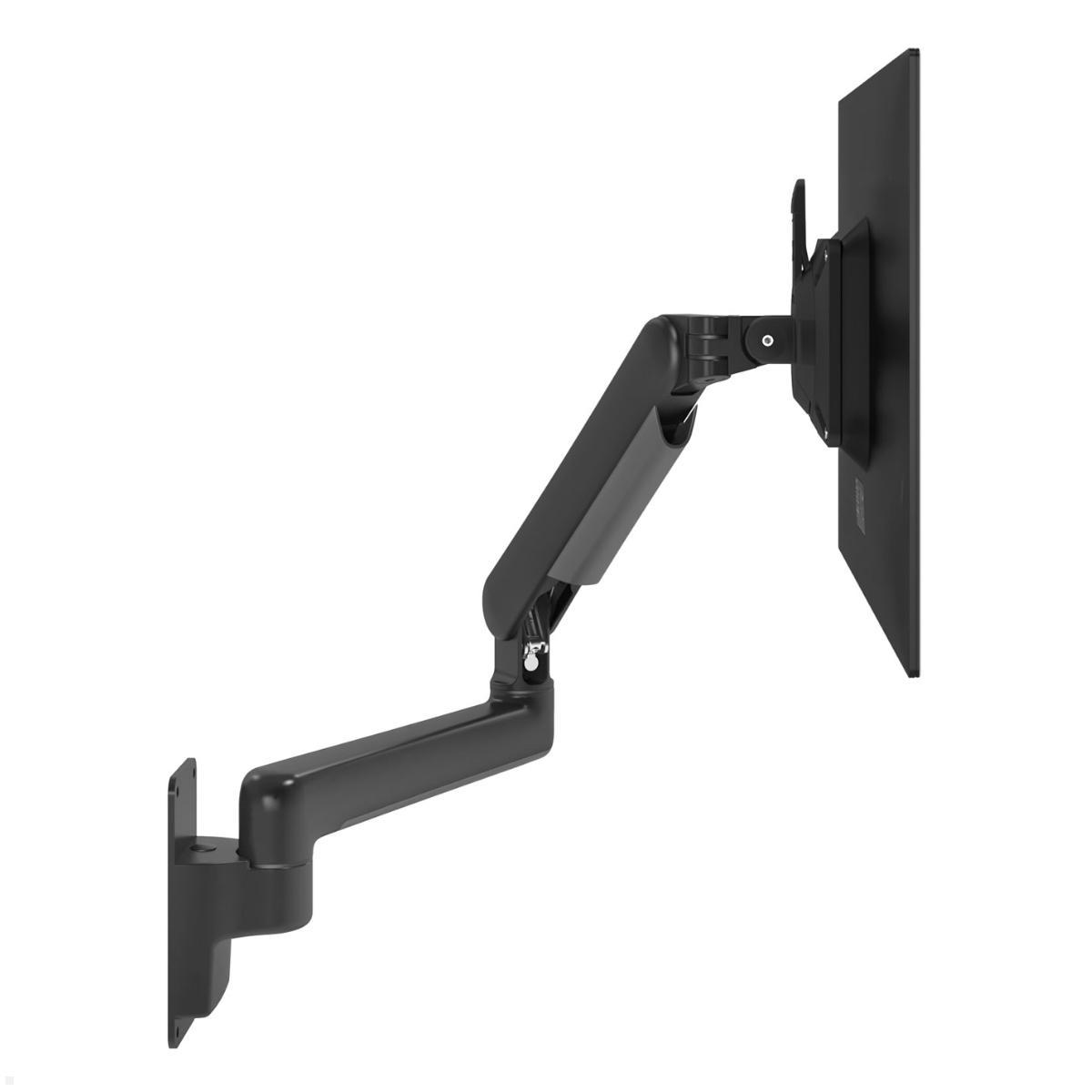

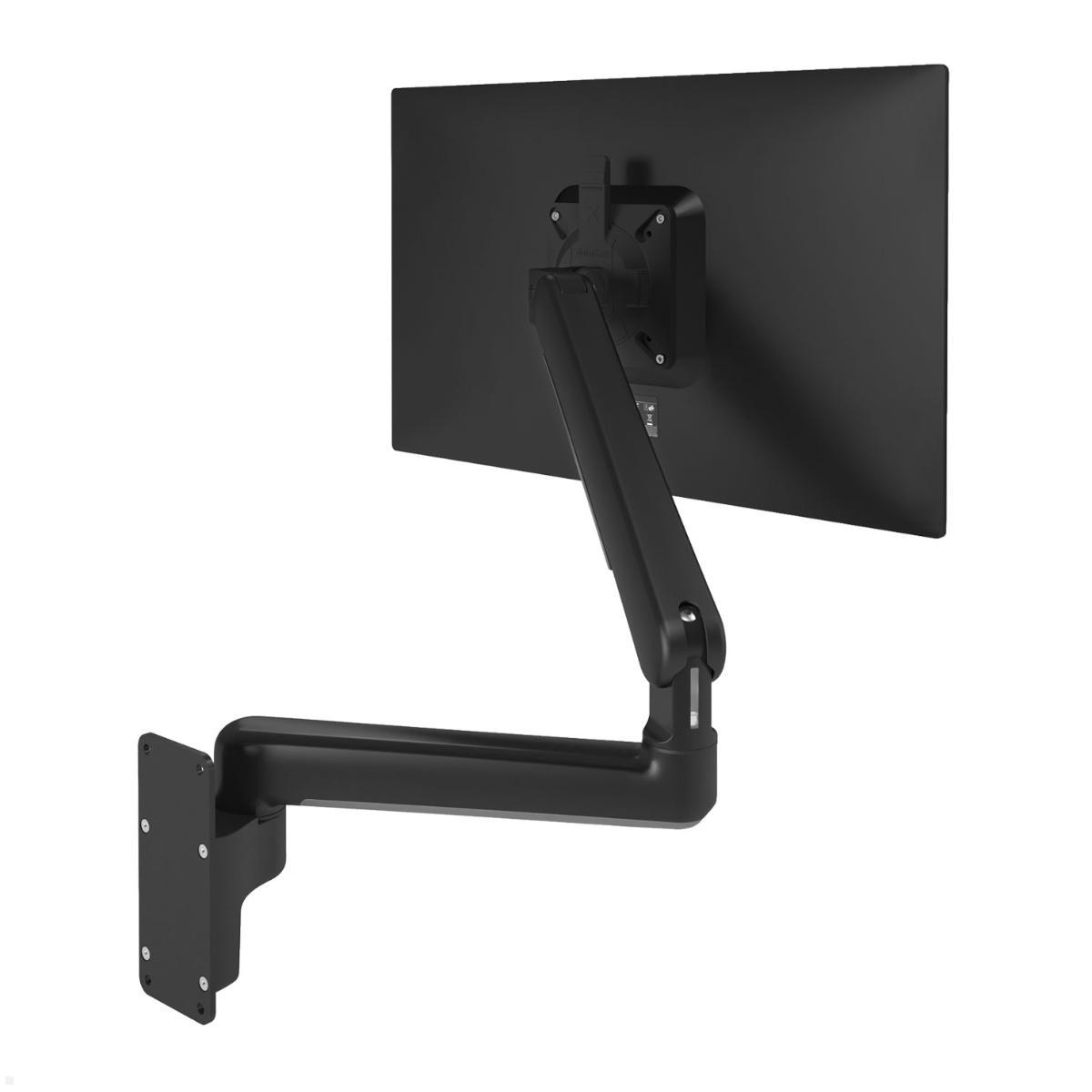

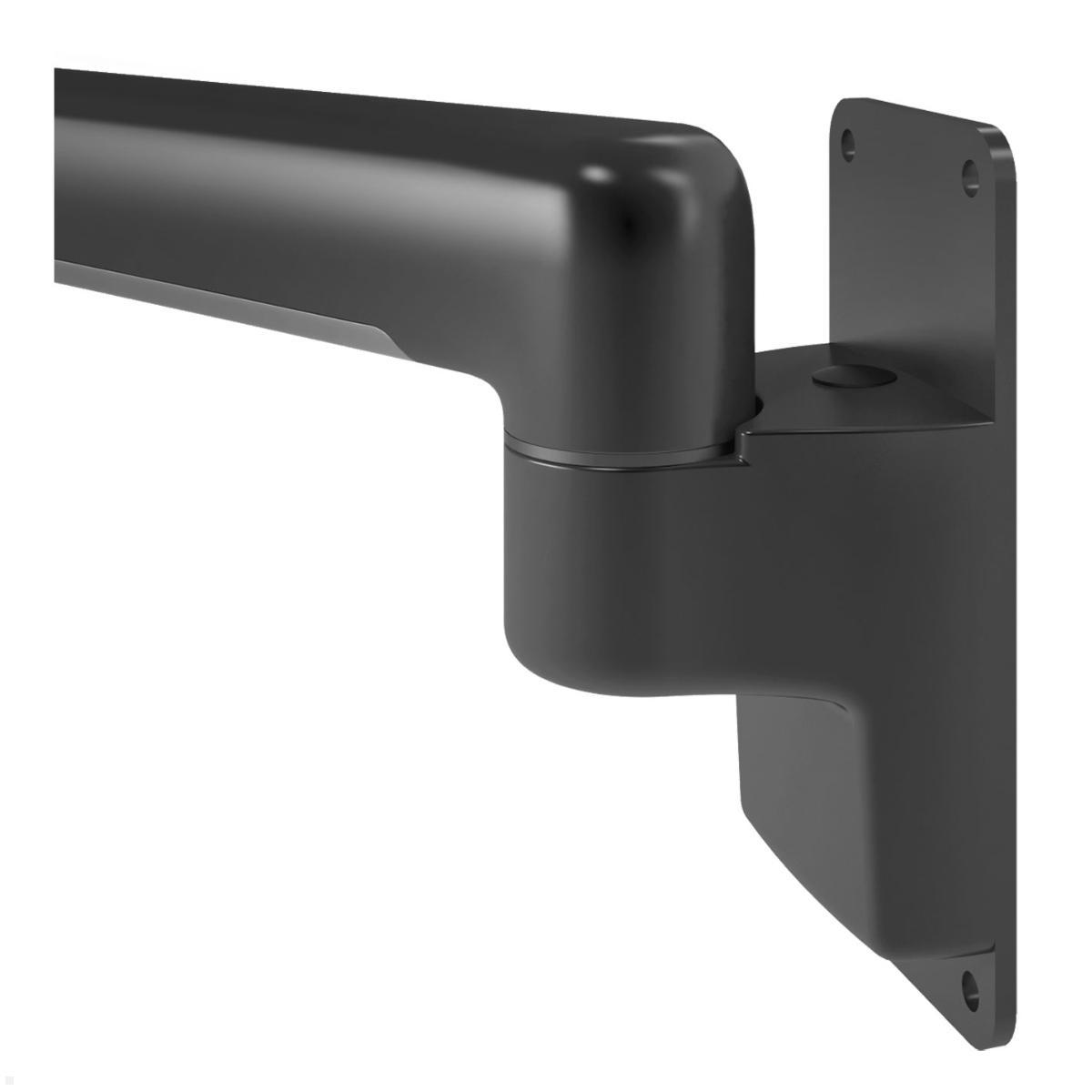

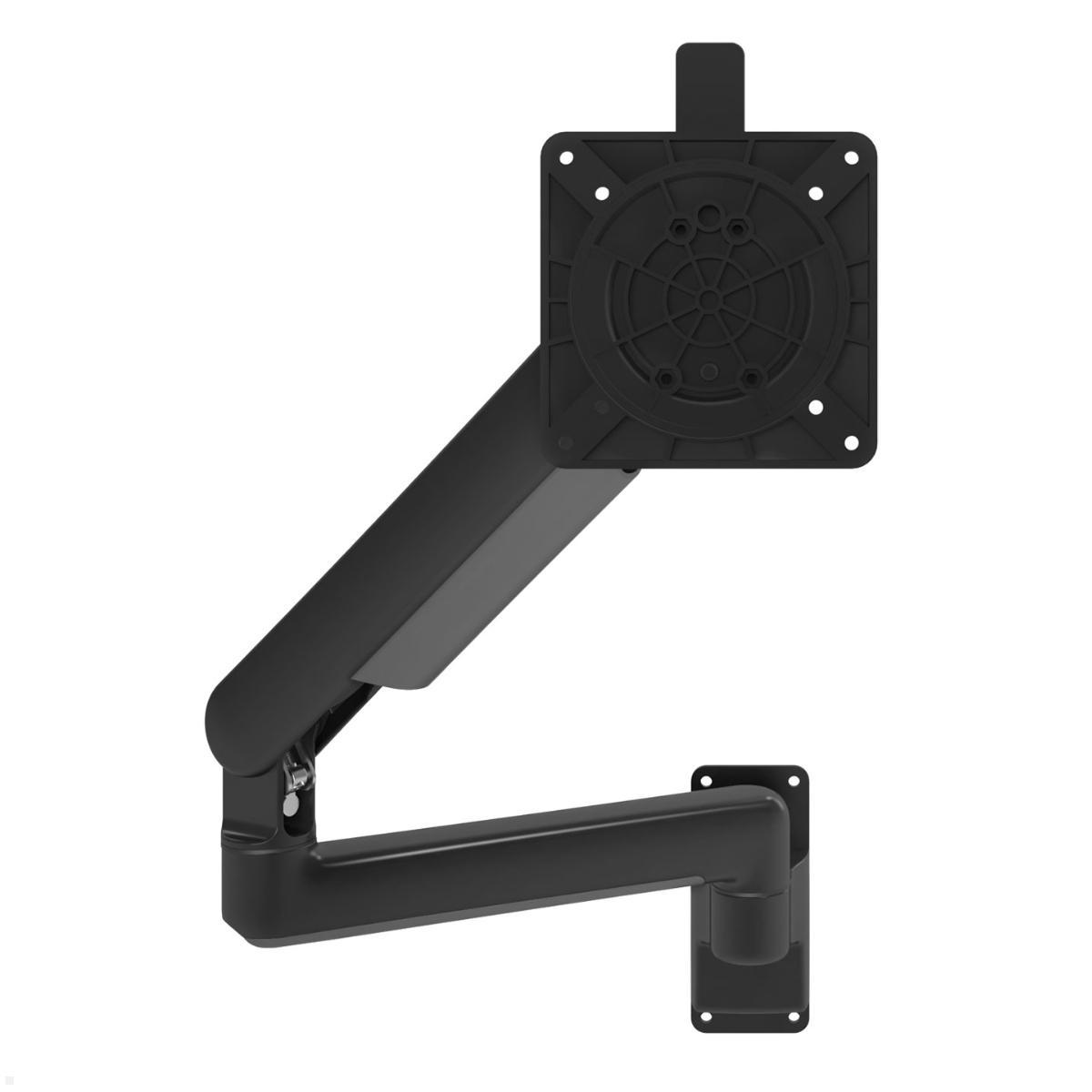

Dataflex Viewprime plus monitor wall mount, black (65.323)
The Dataflex Viewprime plus monitor wall mount offers a wide range of adjustment options and supports screens weighing up to 9 kg with a VESA size of 75x75 or 100x100.
Monitor Wall Mount Dataflex Viewprime Plus 65.323
The Dataflex Viewprime Plus monitor wall mount in black (65.323) is the innovative further development of the successful Viewmate Plus 52.834. Equipped with a built-in gas spring, the monitor can be easily and precisely adjusted to the desired position – ideal for ergonomically optimized workstations. With flexible depth adjustment of up to 569 mm, the mount is particularly well-suited for deep desk surfaces and individual requirements.
Thanks to integrated VESA rotation, the monitor can be used in both portrait and landscape format. The wall mount features a fast VESA quick-release system, integrated cable management, and a tension setting indicator for easy, precise adjustment during installation. The mount is compatible with almost all monitors in VESA MIS-D 75 x 75 and 100 x 100 format and offers full freedom of movement while maintaining robust stability.
Key features Dataflex 65.323 monitor mount
- Dynamic height adjustment range: 355 mm
- Depth adjustment: up to 569 mm
- Monitor tilt: +90° / -50°
- Monitor swivel: ±90°
- Monitor rotation: ±90° (VESA rotation)
- Can be used in portrait and landscape format
- Gas spring with tension setting indicator
- Weight capacity: 1.5 - 9 kg per monitor
- VESA compatible: MIS-D 75 x 75 / 100 x 100 mm
- Includes VESA quick release system
- Arm swivel lock: preset to +90° / -90° (can be deactivated)
- Integrated cable management
- Supplied with wall mounting
- Successor to Dataflex Viewmate 52.834
- Material: Steel / Aluminum
- Color: Black
- Warranty: 5 years
Does the VESA of your flat screen or display fit?
We would be happy to check whether your monitor is suitable for this Dataflex Viewprime plus 65.323 monitor mount. Simply provide us with your model (manufacturer + model number) in the comments field at the end of the ordering process. We will then check whether the monitor or display fits the monitor mount. If not, we will contact you.
VESA Standard - Learn more about the VESA Standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

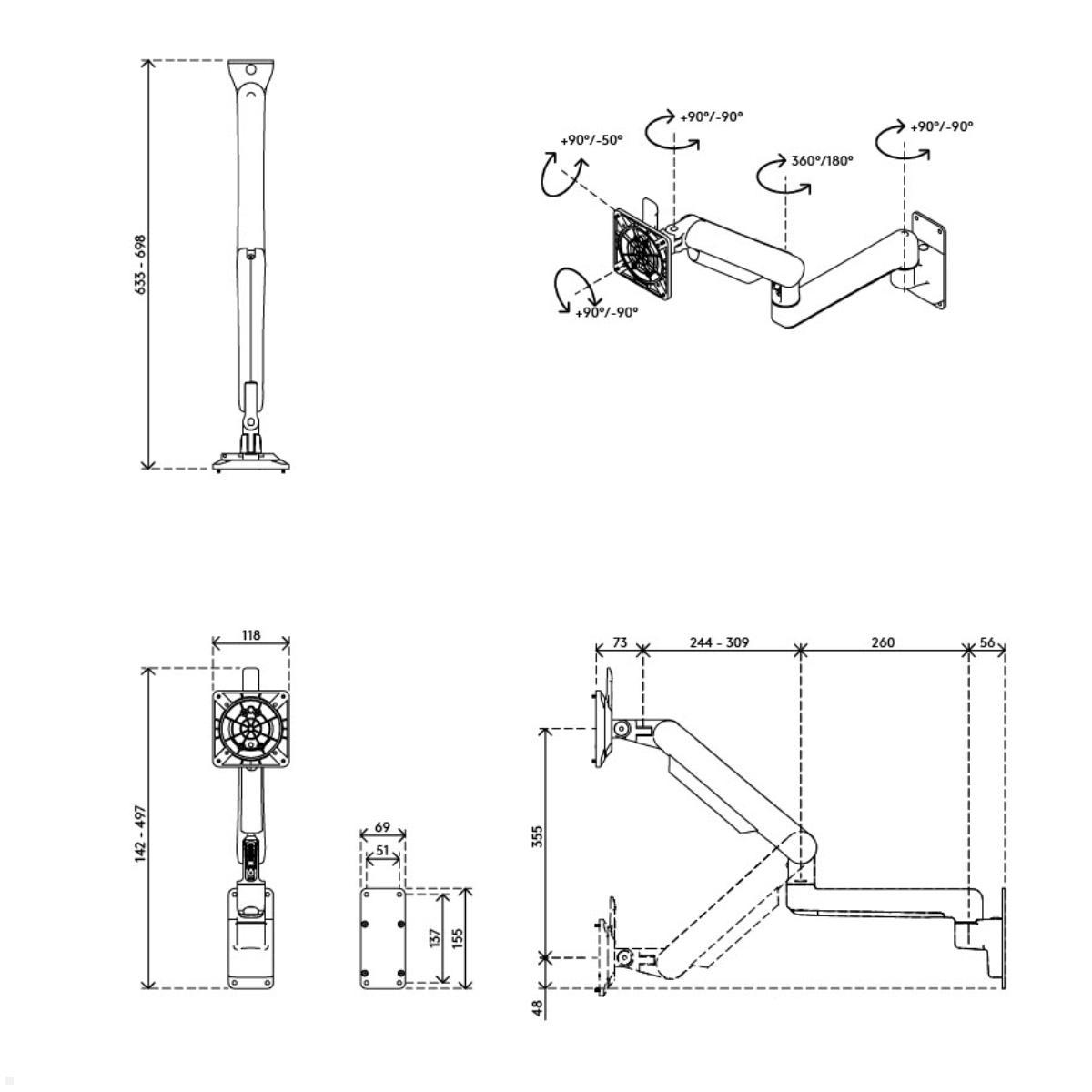

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Minimum weight: | 1,5 kg |
| Capacity: | 9 kg |
| Tilt: | +90°/-50° |
| Rotate: | ± 90° |
| Height range (mm): | 355 |
| Pivot: | 90° |
| Swivelling range: | Vesa +90°/-90° Schwenkarm +180°/-180° |
| Length of the swivel arm: | 633 - 698 |
| Screen size: | 15 - 24" |
| Material: | Steel |
| Old model no.: | 52.834 |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 595x185x135 |
| Scope of delivery: | 1x Viewprime plus wall mount, installation material |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Inch size: | 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mobility: | height adjustable , rotatable (pivot) |
| Mounting type: | wall mount |
| Multi-monitor mount: | 1 monitor |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
1 review
9 July 2025 10:16
Hält, was sie verspricht
Die Halterung macht genau das, was ich erwartet habe. Sie war schnell montiert, sieht in Schwarz sehr schlicht und hochwertig aus. Der Monitor sitzt fest und lässt sich trotzdem leicht ausrichten. Alles wirkt durchdacht und stabil – bin sehr zufrieden.
Dataflex Viewprime Plus Monitor Wall Mount – Ergonomics and Flexibility at the Highest Level
The Dataflex Viewprime Plus Monitor Wall Mount in black (item number 65.323) offers a sophisticated solution for modern workplaces where space savings, ergonomics, and professional cable management play a central role. As the direct successor to the proven model 52.834, this monitor mount has been technically and functionally enhanced to meet the high demands of everyday office use and home office use.
Thanks to its wall-mounted design, the mount creates valuable space on the desk while ensuring a clean, uncluttered appearance. Thanks to the built-in gas spring, the monitor can be adjusted to the desired height with just one finger. The dynamic height adjustment range of 355 mm allows precise adjustment to individual sitting and standing positions – ideal for ergonomic workplace design.
Maximum mobility and easy handling
A special highlight is the flexible depth adjustment of up to 569 mm, which is ideal for deep desks or individual monitor positioning requirements. The VESA-compatible mount (MIS-D 75x75 and 100x100 mm) allows for easy installation of almost all common monitors. Thanks to the integrated VESA quick-release system, screens can be replaced quickly and without tools.
The monitor mount is fully movable:
- Tilts from +90° to -50°
- Pivots by +90°
- Rotates by +90°, ideal for portrait and landscape formats
In addition, the arm's swivel range is preset to +90° / -90° – this limitation can be deactivated if required. The mount supports monitors weighing between 1.5 and 9 kg, making it versatile – for both office workstations and specialized applications such as control rooms, design workstations, or medical workstations.
Professional cable management and high-quality workmanship
Another key feature is the integrated cable management, which invisibly guides all monitor cables inside the arm, ensuring a professional appearance. This not only provides visual benefits but also effectively prevents tripping hazards and cable clutter. The gas spring tension indicator facilitates quick, precise adjustment during installation.
Made of robust steel and aluminum, the monitor mount meets the highest standards of durability, stability, and resilience. The black finish blends discreetly and stylishly into any work environment.
Summary of Benefits - Ideal for Ergonomic Workstations
The Dataflex Viewprime Plus monitor wall mount offers an ideal combination of ergonomics, flexibility, design, and technology. Whether in a professional office, home office, or specialized work environments - This mount contributes to a healthier posture, better screen positioning, and a tidy desk.
