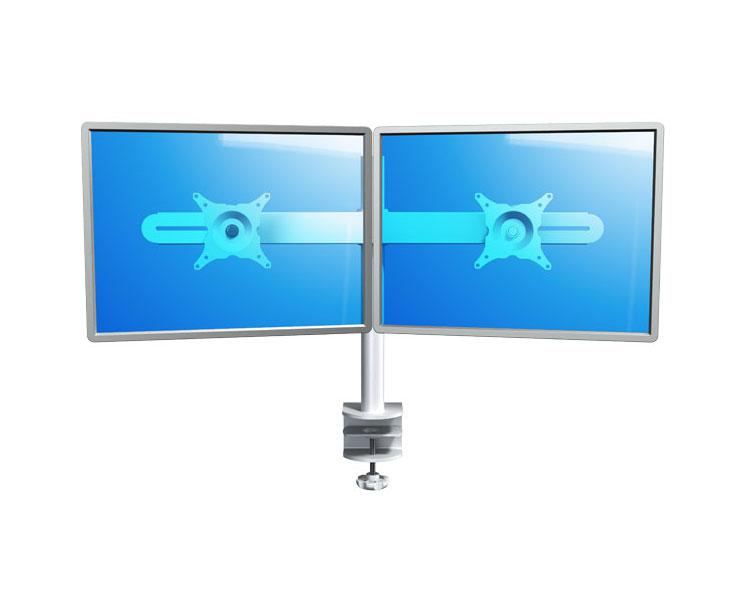

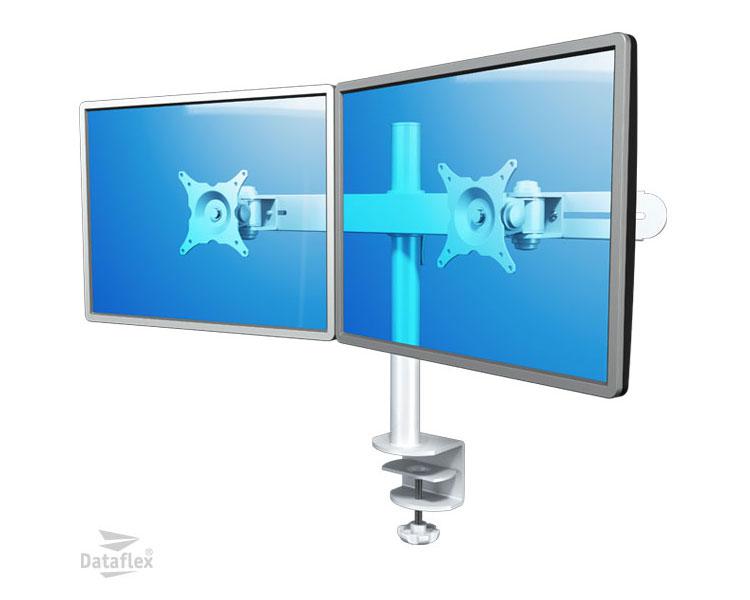

Dataflex ViewMate Ecoline 2-fold monitor desk mount, white (52.260)
The Dataflex Viewmate Ecoline 2-fold side-by-side monitor table mount in the colour white (52.260) fulfils all the demands that can be placed on a monitor table mount, but at a surprisingly low price. Tilt, swivel, rotate, height and depth adjustable. Simple, affordable and ergonomic. Dataflex!
Double monitor desk mount
This seemingly simple double monitor desk mount 52.260 from Dataflex in the colour white holds two monitors side by side horizontally on your desk. The quick-release fastener guarantees simple, stepless height adjustment. Supplied with desk clamp.
Key features Dataflex Viewmate Ecoline 2-fold monitor desk mount (52. 260)
- Colour: White
- Height adjustable
- VESA mount Standard MIS-D 75x75 and 100x100mm compatible
- Rotation 360°
- Tilt 180°
- Tilt 180°
- Support 15 kg per screen
- Sä column height 400 mm
- column diameter 38 mm
- Quick release for easy height adjustment on the column
- Supplied with table clamp (tabletop up to 60mm)
Does the VESA of your flat screen or display fit?
We are happy to check whether your monitor is suitable for this mount. Simply tell us your model (manufacturer + model no.) in the comments field at the end of the ordering process. We will then check for you whether the monitor or display fits the monitor mount and if not, we will contact you.
VESA standard - Learn more about the VESA standard of monitor mounts!
| Product sheet: |  [pdf] |
|---|---|
| Technical drawing: | [pdf] |
| 3D CAD Modell: | [pdf, 3 MB] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Capacity: | 15 kg / Monitor |
| Tilt: | 180° |
| Rotate: | 90° |
| Pivot: | 90° |
| Swivelling range: | 45° |
| Screen size: | max. 24" |
| Thickness of table (mm): | bis 60 |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.de) |
| Contains installation material: | + |
| Warranty: | 2 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Inch size: | 14 inch, 15 inch, 17 inch, 18 inch, 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp |
| Multi-monitor mount: | 2 monitors side by side |
| color: | Black |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
