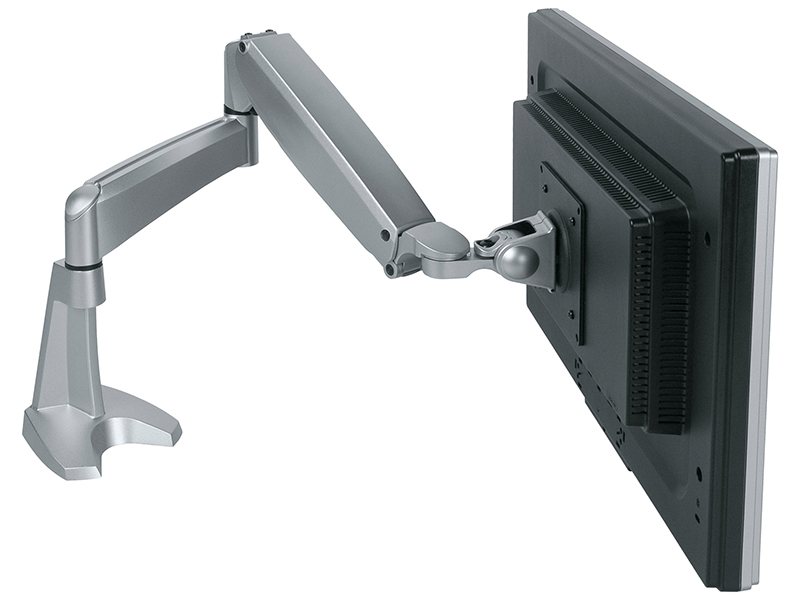

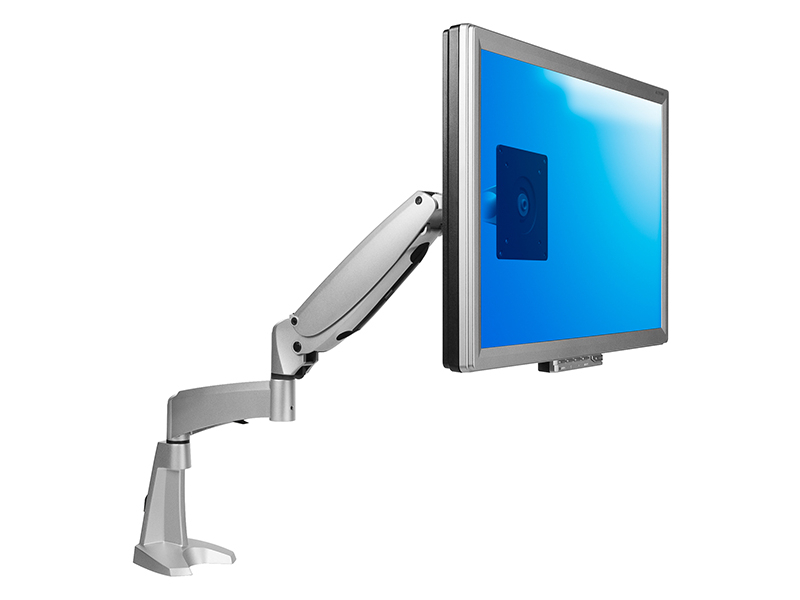

Dataflex Viewmaster monitor swivel arm desk mount (57.152)
This Dataflex Viewmaster monitor arm desk mount in silver (57.152) is ergonomically responsible in every single way. Parallel step less height adjustment, independent depth adjustment, advanced integrated cable management, smooth design. A efficient tool for the modern day worker.
Dataflex Viewmaster deskbase swivel arm in silver (57.152)
Dynamic height adjustment and independent depth adjustment let each user find their own optimal ergonomic position. A high-end design for heavier monitors, that guides cables along the arm's extensions to create a tidy, professional impression.
Key features Dataflex Viewmaster monitor desk bracket (57152)
- Dynamic height adjustment range of 305 mm
- Independent depth adjustment

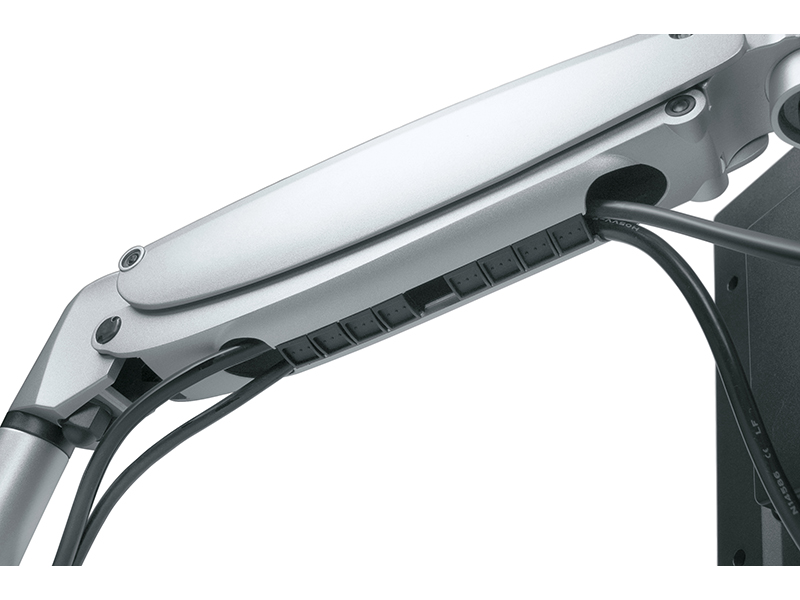

- Partly integrated or concealed cable management
- Main components made of aluminium

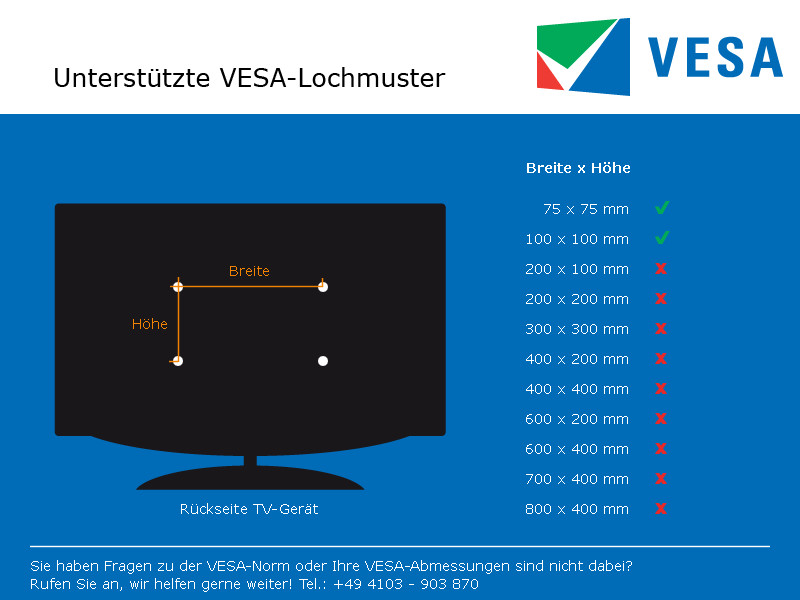

- VESA MIS-D 75x75/100x100 mm compatible

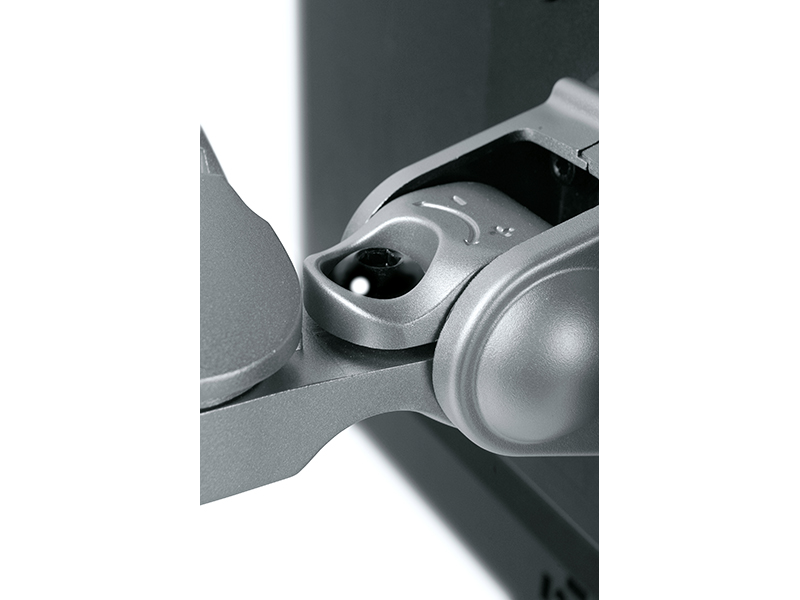

- Rotate +90°/-90°, tilt +90°/-90°, swivel 360°
- Weight capacity min. 4,5 - max. 10 kg per monitor
- Desk clamp capacity 5-55 mm
- Bolt through desk min./max. 10-70 mm
- Monitor size limit: height 886 mm
- Three-dimensional movement
- Touch screen stable
- Comes with both bolt through desk and desk clamp
- Built-in SUSPA® gas spring
- Finish: Silver
Does your monitor or display suit?
We are pleased to check if your monitor or display suits this Dataflex Viewmaster deskbase. Just transfer us your monitor model at the end of the order (model-number) in the comments. We will check then if your monitor is suitable and if not, we will contact you.
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 586 kb] |
|---|---|

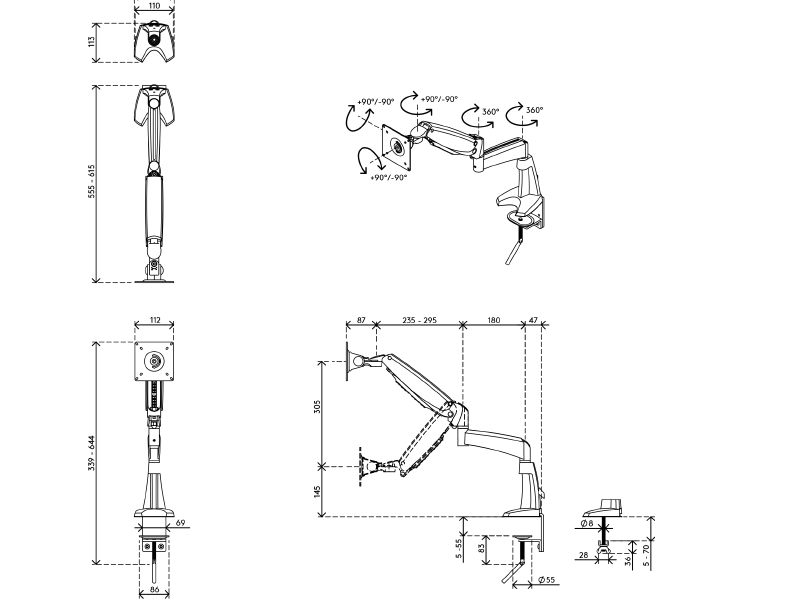

| Technical drawing: | [pdf, 149 kb] |
| Installation manual: | [pdf, 431 kb] |
| Warning/safety instructions: | [pdf] |
| Capacity: | 4,6 - 10 kg |
| Tilt: | +90°/-90° |
| Height range (mm): | 305 mm |
| Swivelling range: | 180° |
| Length of the swivel arm: | 560 |
| Screen size: | 19 - 24" |
| Thickness of table (mm): | 5-70 mm |
| Material: | Die-cast aluminium |
| Special features: | Comes with both bolt through desk and desk clamp |
| VESA Standard: | 75/100 (www.vesa-standard.com) |
| Accessories: | Dataflex Universal VESA Adapter 100 x 100 - 200 x 100Dataflex Universal Keyboard Bracket For Monitor Arms (51592)Dataflex Universal Notebook Support For Monitor Arms (51072)Dataflex ViewMaster M6 Basic Dual Monitor Upgrade Kit |
| Packaging dimensions (LxWxH in mm): | 490 x 285 x 140 |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
