Dataflex Viewmaster monitor mount up to 49 inch (57.172), silver
The Dataflex Viewmaster 57.172 table monitor mount in silver with table clamp offers many functions for an ergonomic posture at the workplace. The table mount is suitable for screens and curved monitors up to 49 inches and is compatible with conventional desks and sit-stand tables. The screen table mount supports a monitor weight from 8 to 18 kg.
Table mount for heavy curved monitors / TV
The Dataflex Viewmaster table mount for heavy curved monitors / TV is ideal for curved flat screens. The monitor table mount for heavy curved displays is designed for screens up to 49 inches. The monitor table mount in silver is 90° forward and 55° backward tiltable. Rotatable is the screen holder by 90° (pivot) and 360° swiveling. Thus, the Viewmaster table mount can be ergonomically adjusted. Equipped with a gas spring from SUSPA®, the ergonomic monitor arm is 305 mm height adjustable. An integrated cable guide cleverly conceals the monitor or TV cabling on the swivel arm to the screen. The desk curved monitor mounts of the Dataflex Viewmaster series are perfect for ergonomically furnished sit-stand desks in offices, home offices, gaming rooms, in reception areas or reception counters.
Key features Dataflex Viewmaster up to 49 inch (57.172)
- Number of monitors: 1
- Screen size: up to 49 inches
- Capacity: 8 - 18 kg
- Min. weight: 8 kg

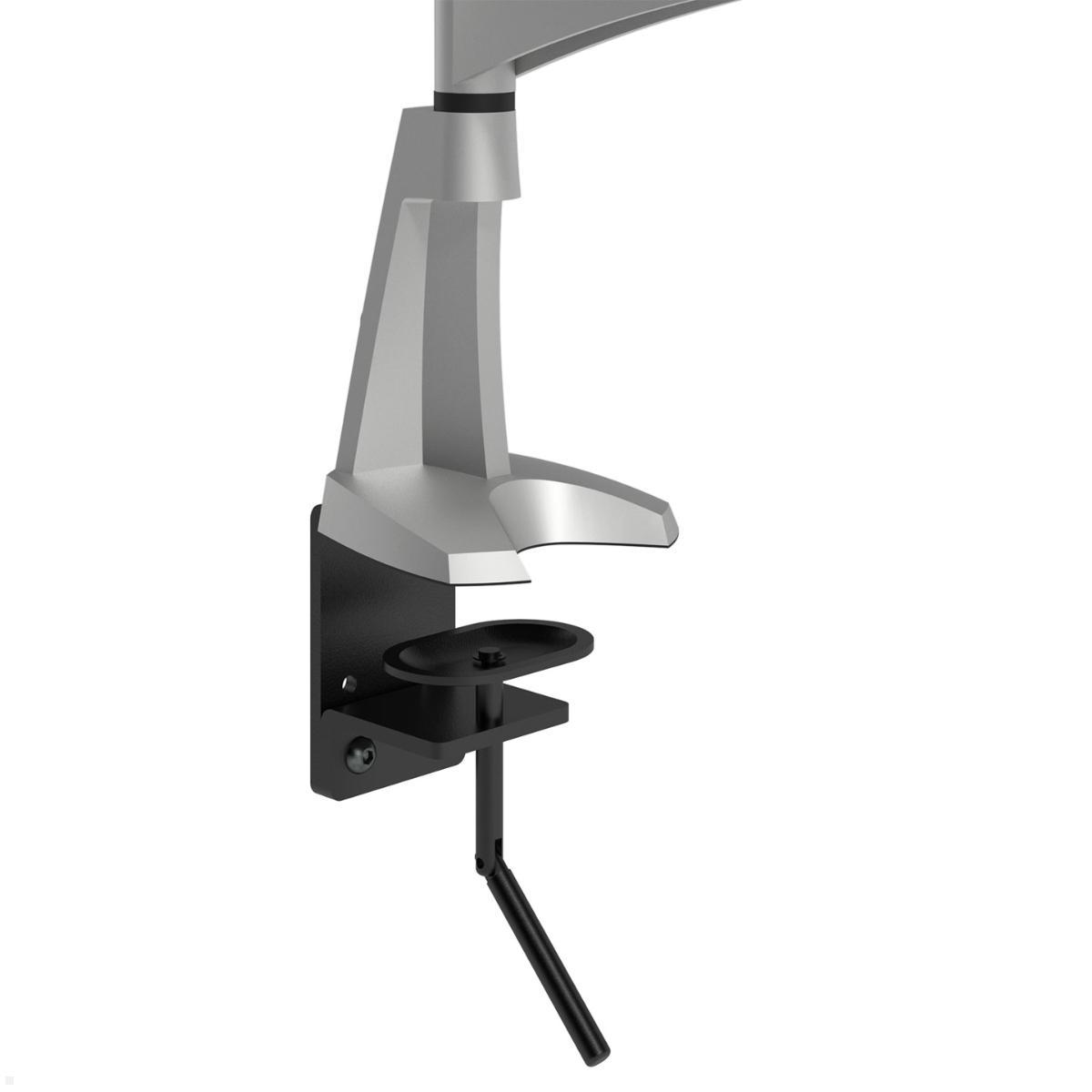

- Table mount: table clamp
- Suitable for table thickness: 5 - 55 mm
- VESA mount: 75x75, 100x100 mm
- Height adjustable: 305 mm
- Tilt: +90°/-55°
- Rotate: 90 degrees (pivot function)
- Swivel 360°
- SUSPA® gas spring
- Finish: silver
- Warranty: 5 years
Will your monitor or display fit the Dataflex table monitor holder?
We are happy to check if your monitor is suitable for this monitor mount Dataflex 57.172. For this purpose simply write your model (manufacturer + model no.) at the end of the ordering process in the comment field. We will then check for you if the display fits the monitor mount and if not, we will contact you.

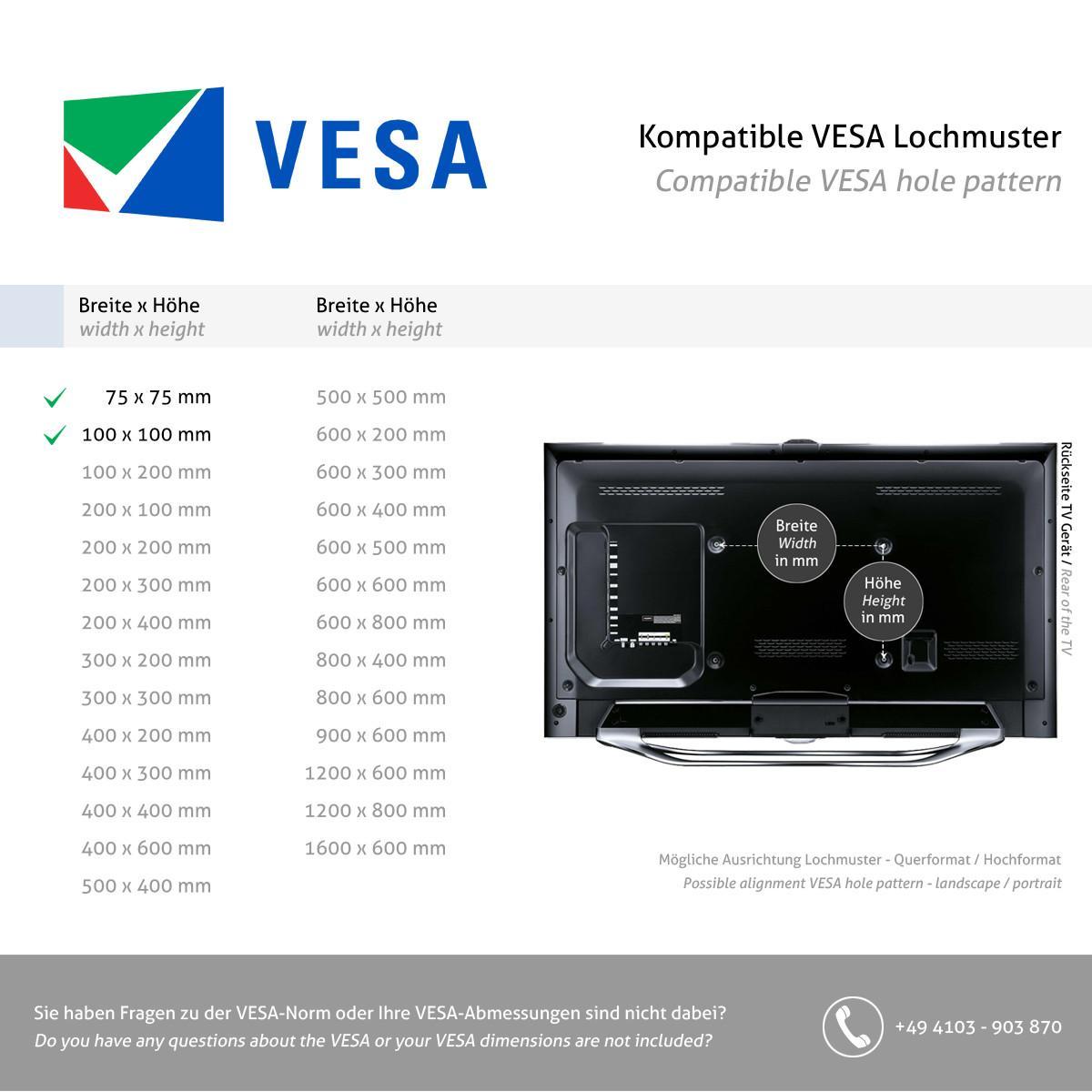

VESA Standard - Learn more about the VESA standard of monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

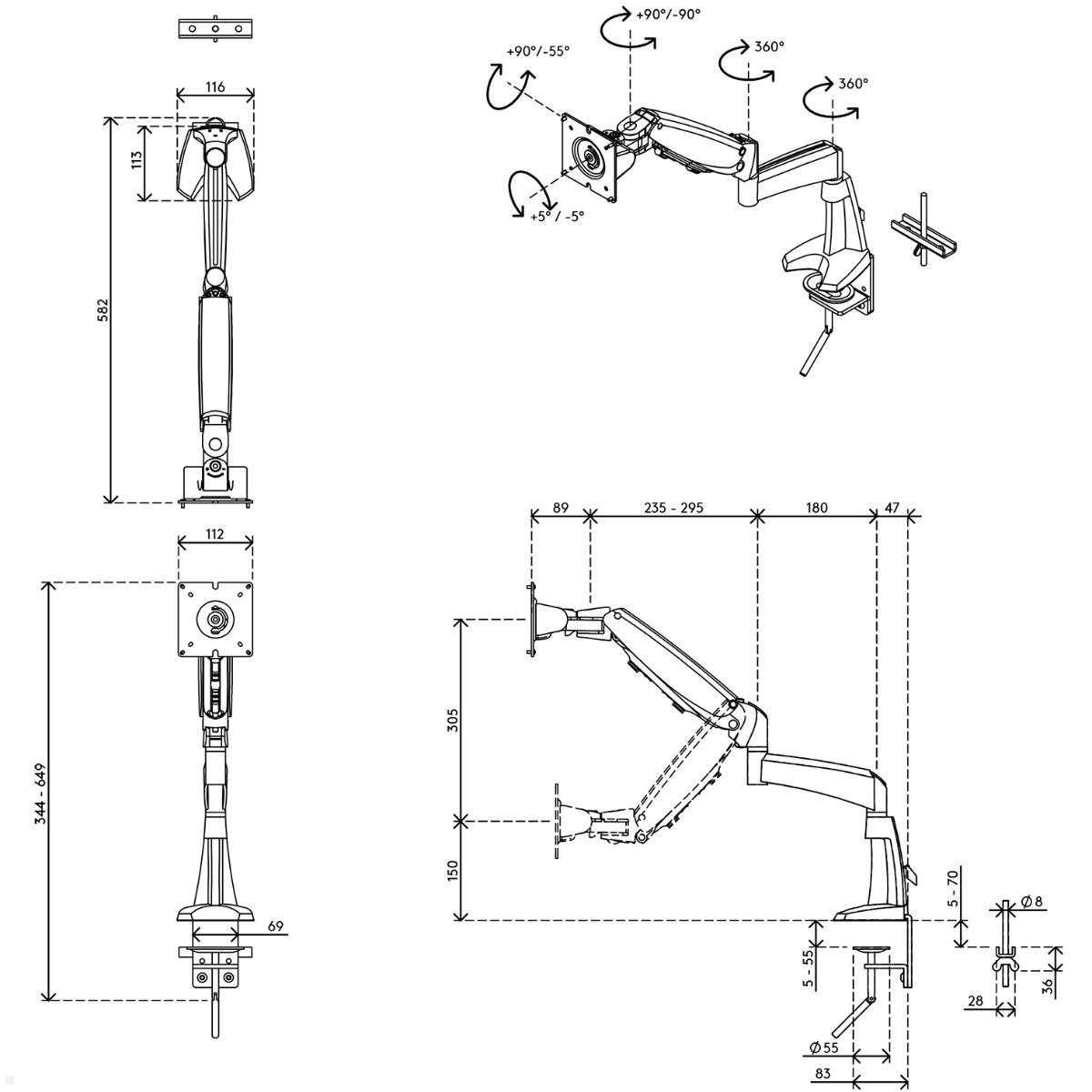

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Minimum weight: | 8 kg |
| Capacity: | 8 - 18 kg |
| Tilt: | +90°/-55° |
| Rotate: | 90° |
| Height range (mm): | 305 mm |
| Pivot: | 90° |
| Swivelling range: | 360° |
| Length of the swivel arm: | 475 |
| Screen size: | 19 - 49" |
| Thickness of table (mm): | 5 - 55 mm |
| VESA Standard: | 75x75, 100x100 mm (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 490 x 285 x 140 |
| Scope of delivery: | 1x Dataflex Viewmaster 57.172 monitor mount, desk clamp |
| Warranty: | 5 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch, 34 inch, 35 inch, 37 inch, 38 inch, 40 inch, 42 inch, 43 inch, 46 inch, 47 inch, 48 inch, 49 inch |
| Mobility: | height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | Desk mount |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
