EOL - Dataflex ViewLite monitor arm 182
The ViewLite monitor arm range was created by combining simplicity and attention to detail in one sustainable concept. Using aluminium as the main material, the monitor arms are light, sustainable and recyclable. The diversity of mounting capabilities makes it possible to free up valuable desk space and provide the user with an ergonomic work place. The modular composition of the ViewLite range allows a mounting solution for nearly every situation.
Dataflex ViewLite monitor arm 182

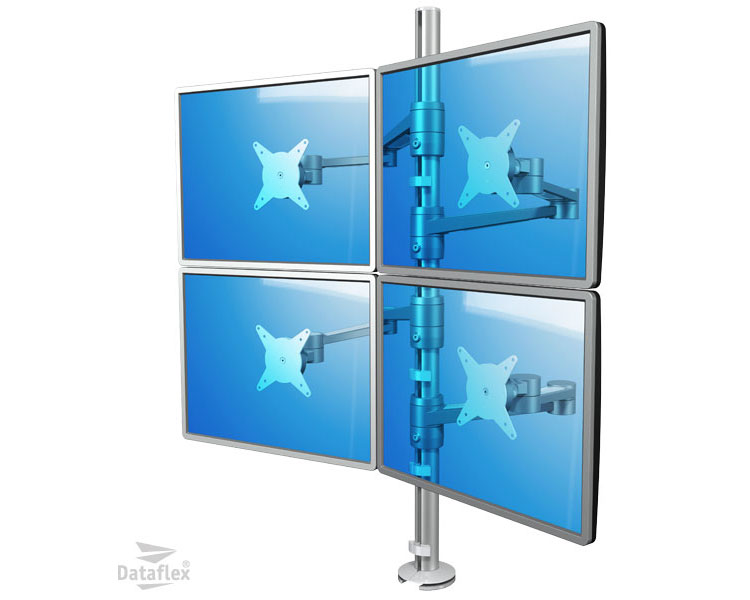

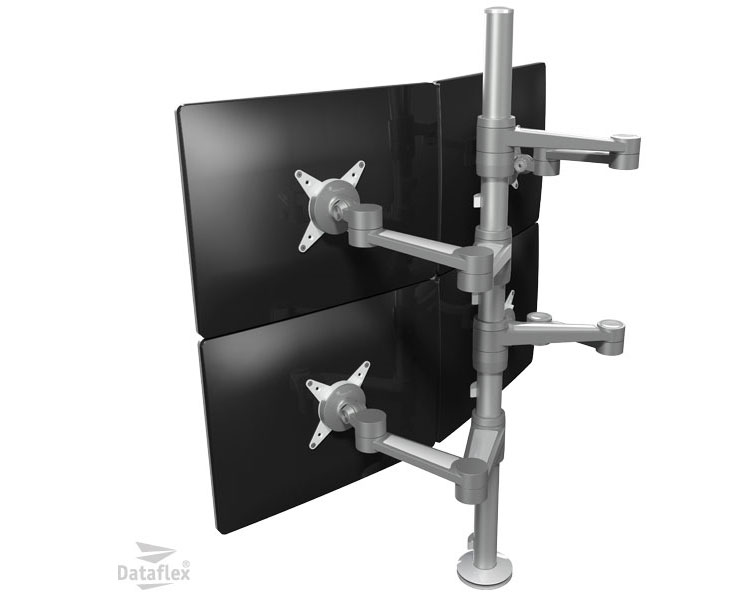

The Dataflex ViewLite Monitor arm 182 is suitable for quad screen configurations, two above and two below. Mainly used in control rooms, security applications and other situations requiring multi monitor setups. Each screen can be configured individually and can therefore be seamlessly integrated in the configuration.
- Step-less height adjustment over 300mm
- Step-less depth adjustment over 450mm
- Suitable for quad monitors
- Comes with both bolt through desk and desk clamp
- Suitable for worktops up to 8-70mm thick
- Rotate 360°, tilt +90°/-55°, swivel 360°
- Easily mounted and adjusted
- VESA: MIS-D 75 x 75/100 x 100mm compatible
- Includes advanced and practical Quick Release VESA system
- Max. weight capacity 8kg/monitor (up to 24”/24”W)
- Main components produced from aluminium

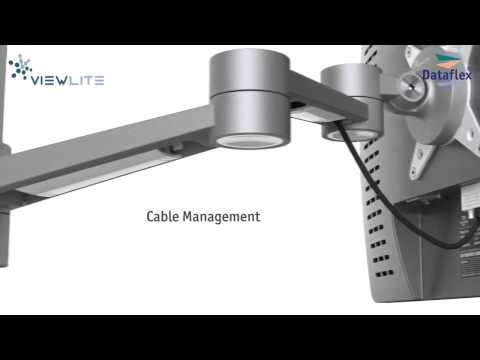

- Integrated cable management
- Adjustable monitor rotation lock
If you are interested in more information about VESA-Standards for monitorbrackets click here!
| Product sheet: |  [pdf, 434 kb] |
|---|---|
| Technical drawing: | [pdf, 191 kb] |
| Installation manual: | [pdf, 1 MB] |
| Warning/safety instructions: | [pdf] |
| Capacity: | 5 kg pro Bildschirm |
| Tilt: | +90°/-55° |
| Height range (mm): | 300 |
| Swivelling range: | 360° |
| Length of the swivel arm: | 451 |
| Screen size: | 15 - 24" |
| Thickness of table (mm): | 70 |
| Material: | Main components produced from aluminium |
| Special features: | Comes with both bolt through desk and desk clamp |
| VESA Standard: | 75x75, 100x100, MIS-D (www.vesa-standard.com) |
| Contains installation material: | + |
| Warranty: | 5 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | Quad solution |
| color: | Silber |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
