Dataflex Viewgo modular monitor mount for 4 monitors up to 32 inches
Highlights
- 4-monitor mount for maximum screen overview
- Modular system for flexible expansion and customization
- Ergonomic positioning through tilt, rotation and height adjustment
- Tool-free height adjustment along the column

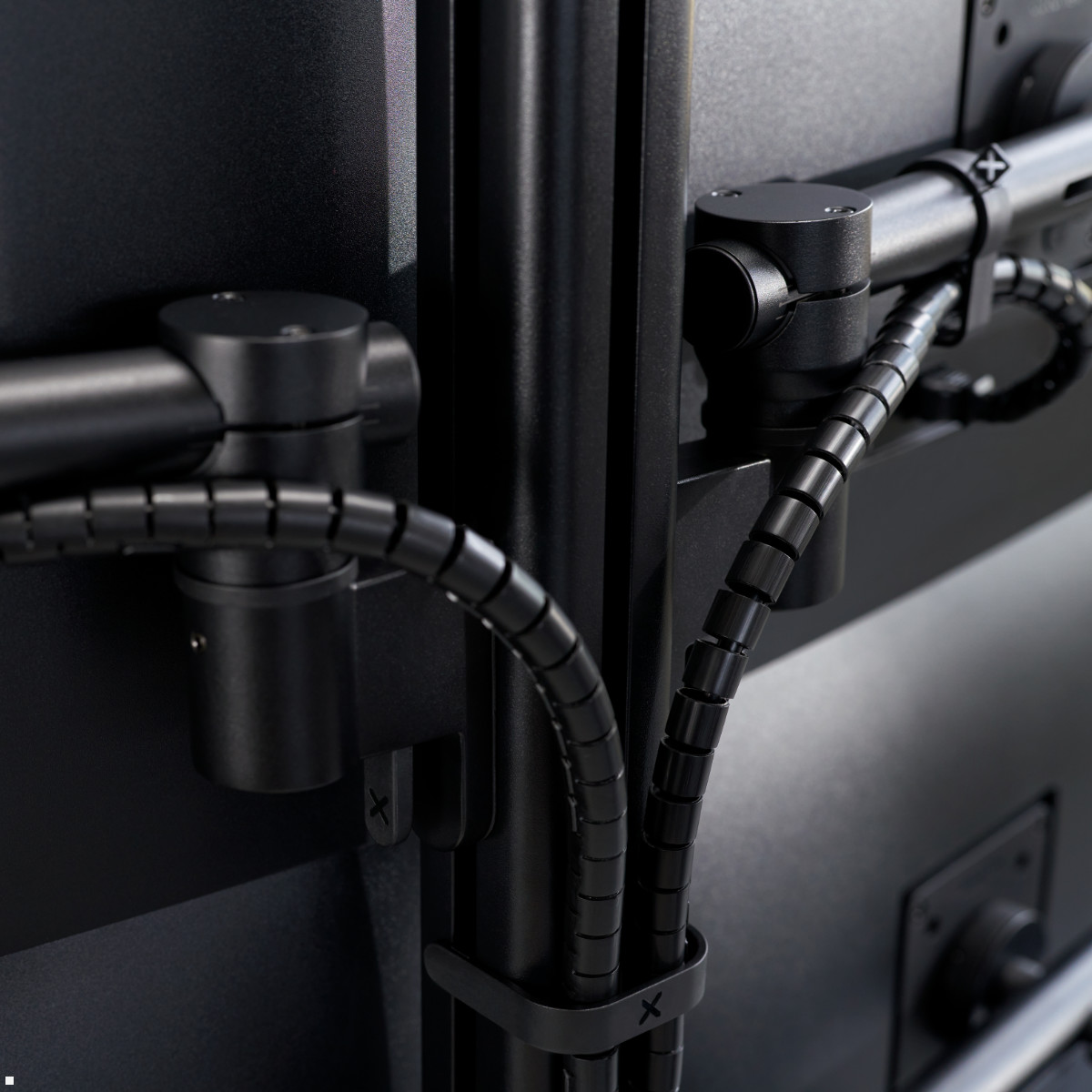

- Space-saving solution with integrated cable management
Dataflex Viewgo modular Monitor Arm for 4 Monitors
The Dataflex Viewgo modular monitor arm – Desk 240 is a powerful solution for workstations with four monitors. The 1x4 configuration enables a structured and clear arrangement of multiple screens and is particularly suitable for demanding applications such as control rooms, trading environments, or technical workplaces.
Due to its modular design, the system can be flexibly adapted to different requirements and expanded if needed. The stable column construction ensures secure support for multiple monitors and allows even alignment along the mounting slots.
Ergonomic adjustment is achieved through versatile adjustment options. Each monitor can be individually tilted, rotated, and swivelled, providing optimal viewing of all content. The tool-free height adjustment along the column also allows quick adaptation to different users or working positions. In addition to ergonomic optimization, the monitor mount enables efficient use of desk space. By elevating the monitors, additional space is created on the desk and a structured, tidy working environment is achieved.
Technical details 4-way monitor desk mount:
- Monitor mount for 4 monitors
- Screen size: up to approx. 32 inches
- Load capacity: up to 9 kg per monitor
- Tilt: approx. +25°/−25°
- Rotation +90°/−90°
- Swivel range: +90° / -90°
- Arm rotation: up to 360°

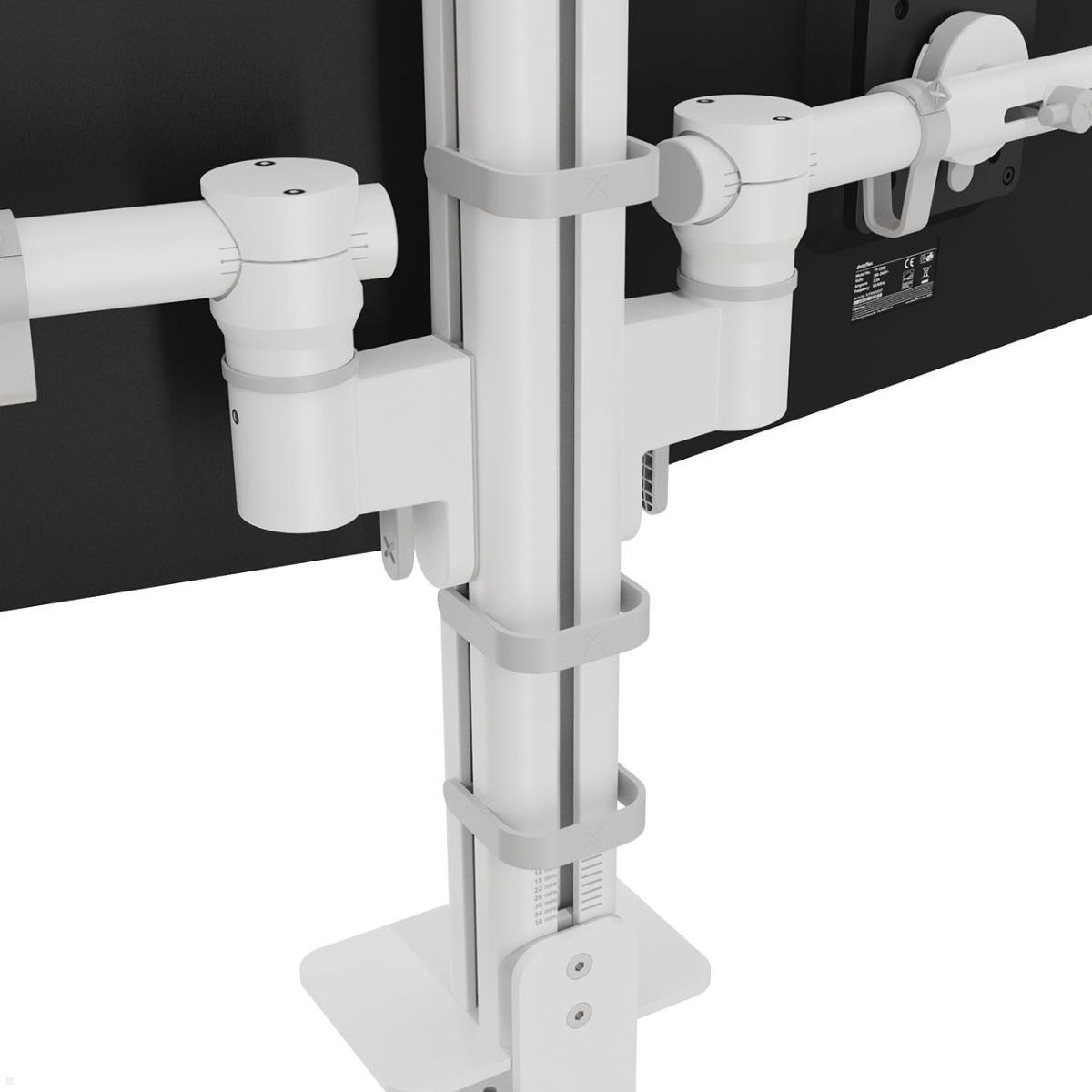

- Height adjustment: tool-free along the column
- Static height adjustment of 645 mm
- Depth adjustment: flexibly positionable (depending on arm configuration)
- VESA quick-release as standard
- Compatible with VESA mount MIS-D 75x75 and 100x100 mm

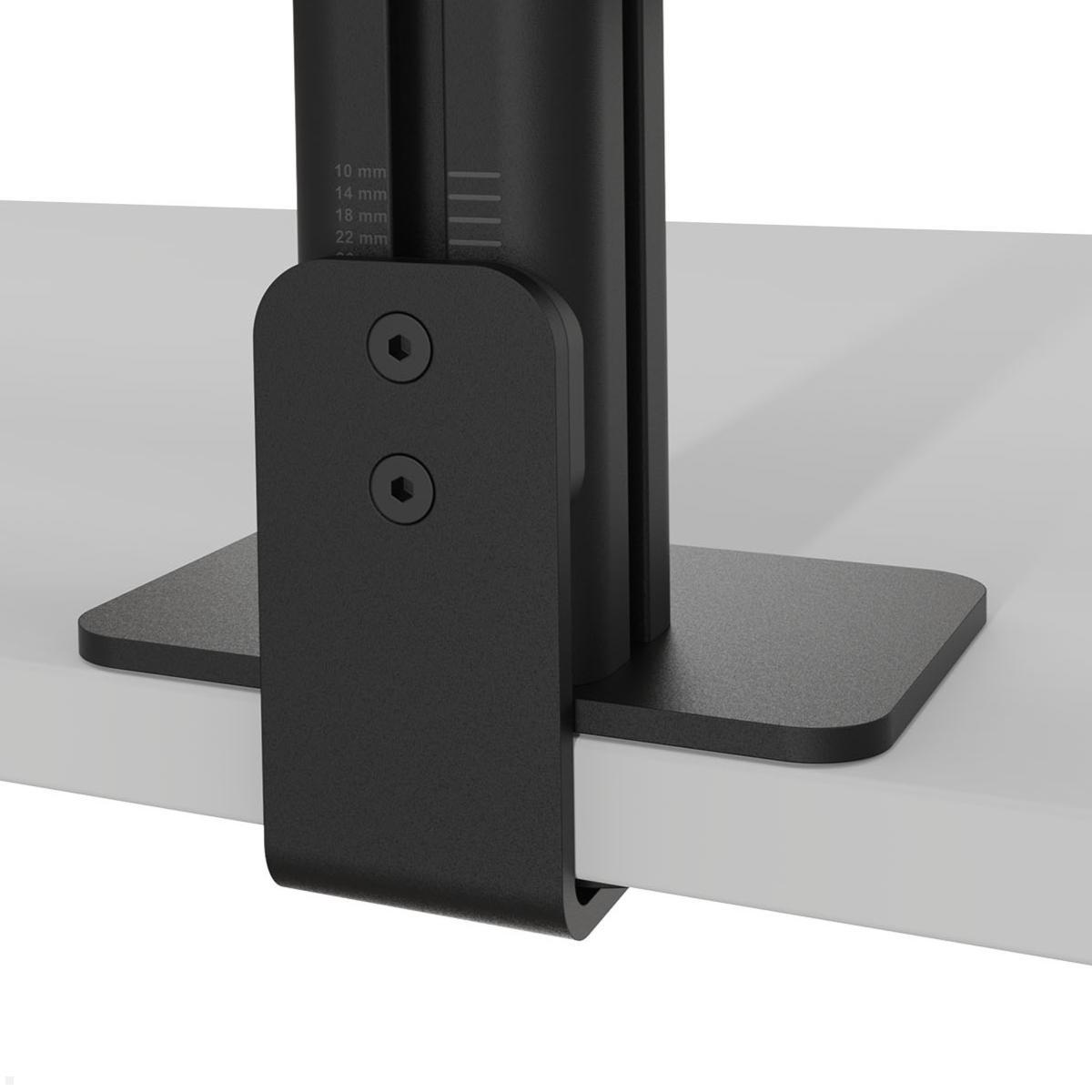

- Desk clamp mounting for desk thicknesses from 5 to 40 mm
- Through-desk mounting for desk thicknesses up to 50 mm
- Maximum width 770 mm per screen
- Maximum height 530 mm per screen
- Warranty up to 15 years after registration

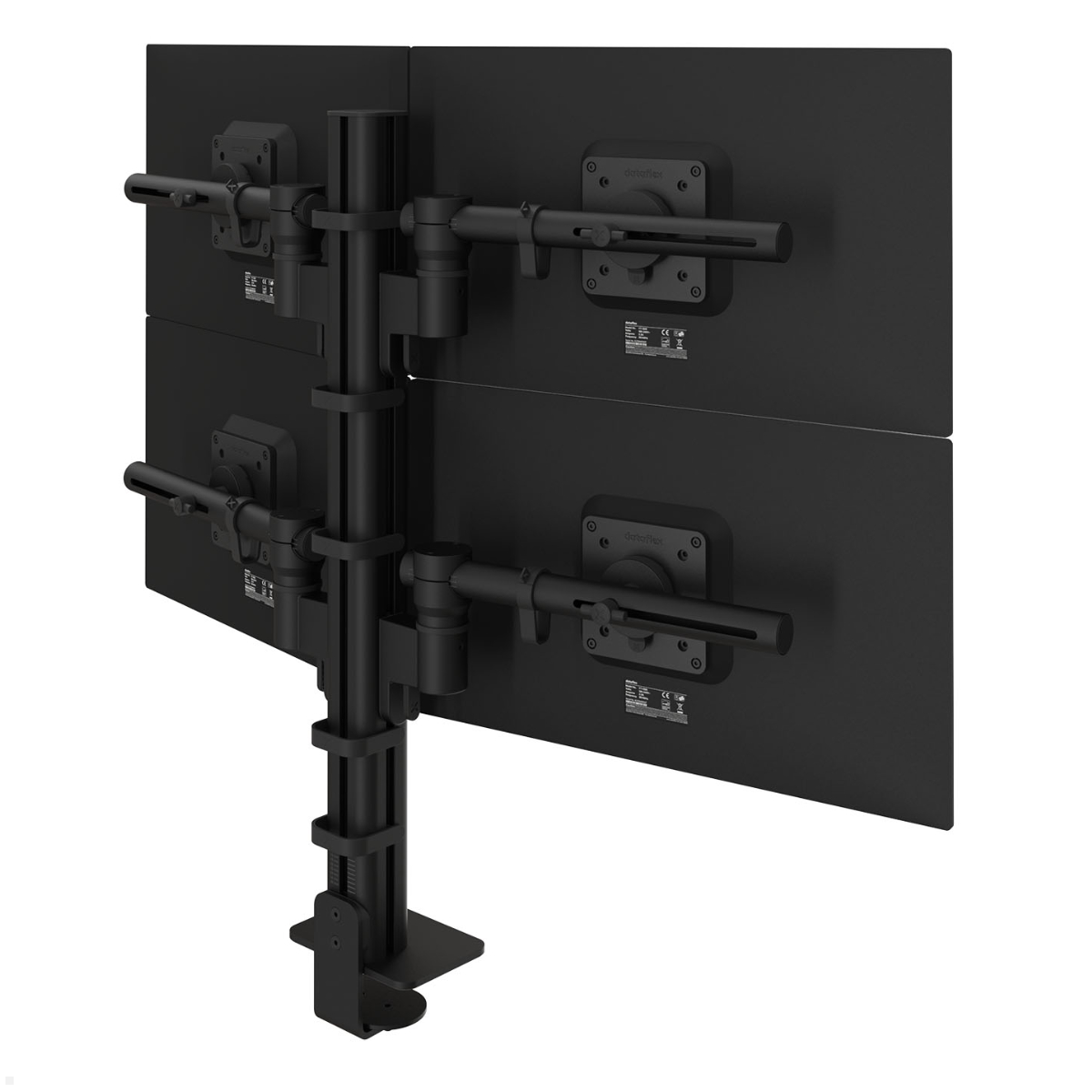

- Available in black (48.243) and white (48.240)
Does your monitor or display fit the monitor mount?
We will gladly check whether your monitor is suitable for this Dataflex Viewgo modular monitor mount. Simply provide your model (manufacturer + model no.) at the end of the ordering process in the comments field. We will then check for you whether the monitor or display fits the mount and, if not, will contact you.
VESA Standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

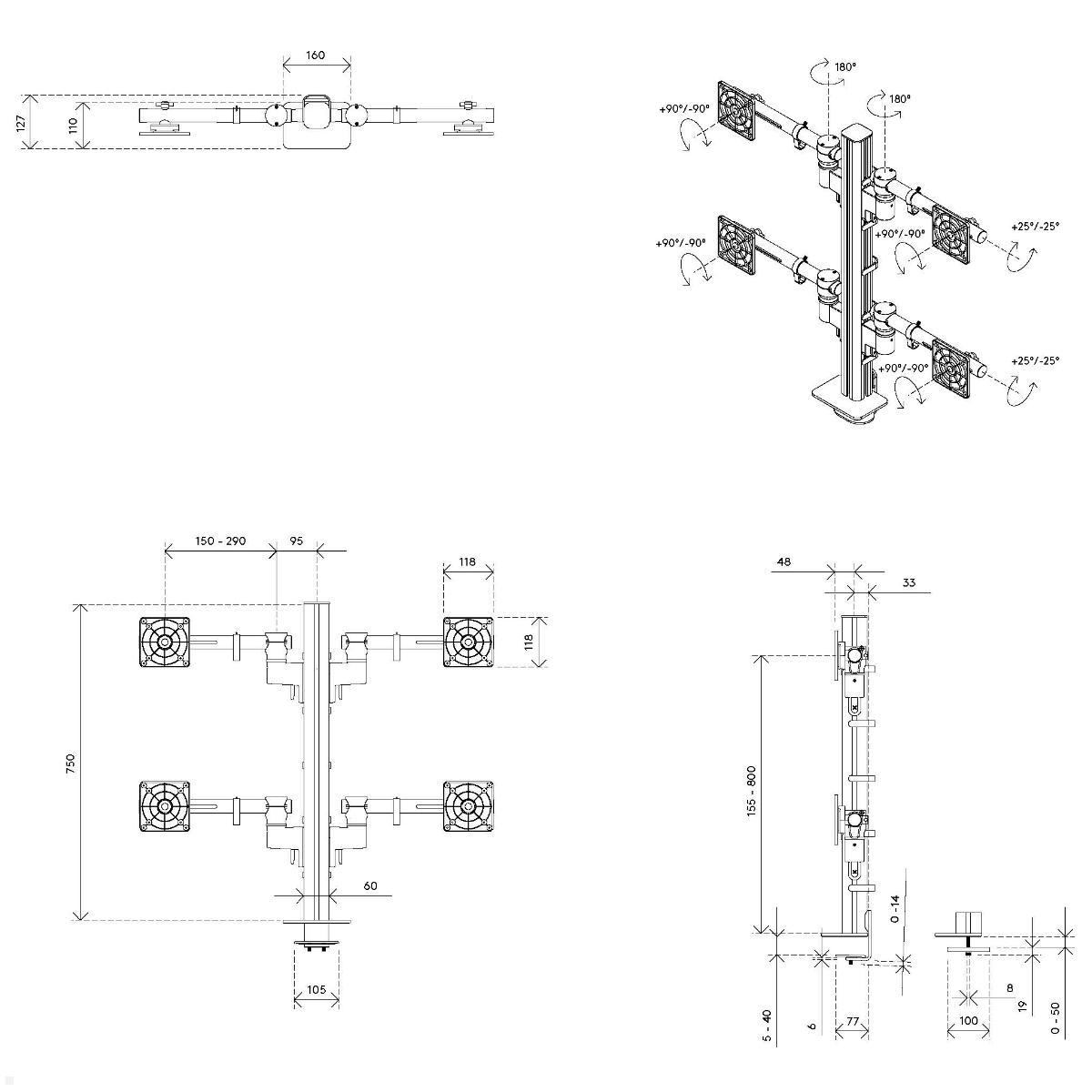

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Capacity: | 9 kg pro Monitor |
| Tilt: | +25°/−25° |
| Rotate: | 90° |
| Height range (mm): | 645 |
| Pivot: | 90° |
| Swivelling range: | +90°/-90° |
| Screen size: | bis 32'' |
| Thickness of table (mm): | Klemme: 5 - 40 mm, Durchtisch: 50 mm |
| Material: | Aluminium, Stahl |
| Special features: | Inklusive Tischklemme und Durchsteck-Befestigungssatz |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 845x340x180 |
| Scope of delivery: | 1 x Dataflex Viewgo modular 4-monitor mount | table clamp | through-desk mount | installation materials |
| Contains installation material: | + |
| Warranty: | 15 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch |
| Mobility: | Drehbar, height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | Quad solution |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
What is the Dataflex Viewgo modular monitor arm for 4 monitors up to 32 inches?
It is a 4-monitor desk mount with a 1x4 configuration, modular and flexible for demanding workplaces.
-
How many monitors and screen sizes are supported?
Supports 4 monitors up to about 32 inches each; weight capacity up to 9 kg per monitor.
-
What adjustability does the arm offer?
Each monitor can be tilted, rotated and swiveled; height adjustment along the column is tool-free.
-
How does it help create more desk space?
The elevated monitor position creates additional desk space and a tidy, organized workspace.
-
What are the technical details?
Tilt +/-25°, rotation +/-90°, swivel +/-90°, arm rotation up to 360°, tool-free height adjustment along the column; static height 645 mm; depth is flexibly positionable depending on arm configuration; VESA quick-release standard; MIS-D 75x75/100x100; desk clamp 5-40 mm; through-desk 5-50 mm; maximum width 770 mm and height 530 mm per screen; weight capacity 9 kg per monitor; available in black and white with part numbers 48.243 and 48.240.
-
What VESA standards are supported?
VESA quick-release is standard; compatible with MIS-D 75x75 and 100x100 mm.
-
Can I check if my monitor fits?
We can check for you—at the end of the order provide the manufacturer and model number; we will confirm if the monitor fits and contact you if not.
-
Which colours are available?
Available in black (48.243) and white (48.240).
For which workplaces is a 4-monitor arm suitable?
A monitor arm for four monitors is the ideal solution for workplaces with a high volume of information. The Dataflex Viewgo modular monitor arm – Desk 240 enables a structured display of multiple applications and provides maximum overview.
Typical areas of use are control rooms, monitoring centers, technical workstations, as well as demanding office applications. A 4-monitor mounting system allows large amounts of data to be displayed efficiently and quickly captured.
What advantages does a multi-monitor setup with four screens offer?
A monitor arm for 4 monitors creates a particularly large workspace and enables the simultaneous use of multiple applications. Content can be displayed in parallel, optimizing work processes.
The clear structure of a four-monitor setup improves clarity and makes it easier to handle complex tasks. This leads to higher efficiency and better organization in everyday work.
How does a modular monitor mount contribute to future-proofing?
The modular design allows flexible adaptation to new requirements. A modular monitor arm for four screens can be expanded or reconfigured at any time without a complete replacement.
This flexibility makes the monitor arm a long-term economical solution for companies and professional users.
What ergonomic advantages does a 4-monitor mount offer?
An ergonomic monitor arm for four monitors allows individual adjustment of each screen. All monitors can be positioned so that they fall within an optimal field of view.
This reduces strain on the neck and eyes and ensures comfortable working—even during intensive use over long periods.
How does a monitor mount improve workplace organization?
Using a desk mount for multiple monitors significantly relieves the desk. Monitors are positioned space-savingly, creating more room for other work tools.
A structured work environment contributes to better concentration and more efficient working practices.
