Dataflex Viewgo modular monitor mount for 2 monitors up to 32 inches
Highlights
- Modular system for flexible expansion and customization
- Suitable for two monitors up to approx. 32 inches
- Ergonomic positioning through tilt, swivel and height adjustment
- Tool-free height adjustment along the sturdy column
- Space-saving solution with integrated cable management
Dataflex Viewgo modular monitor arm for 2 monitors

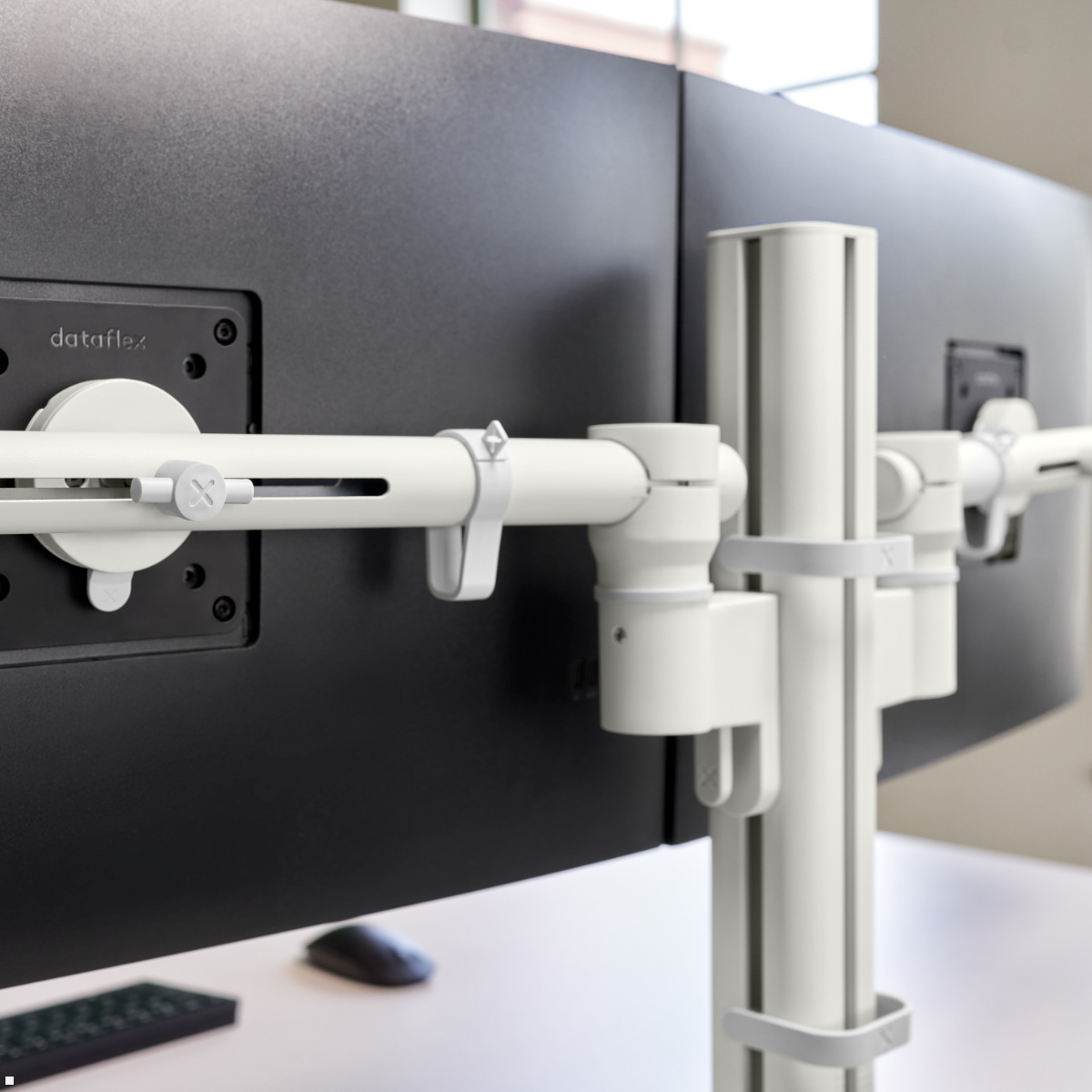

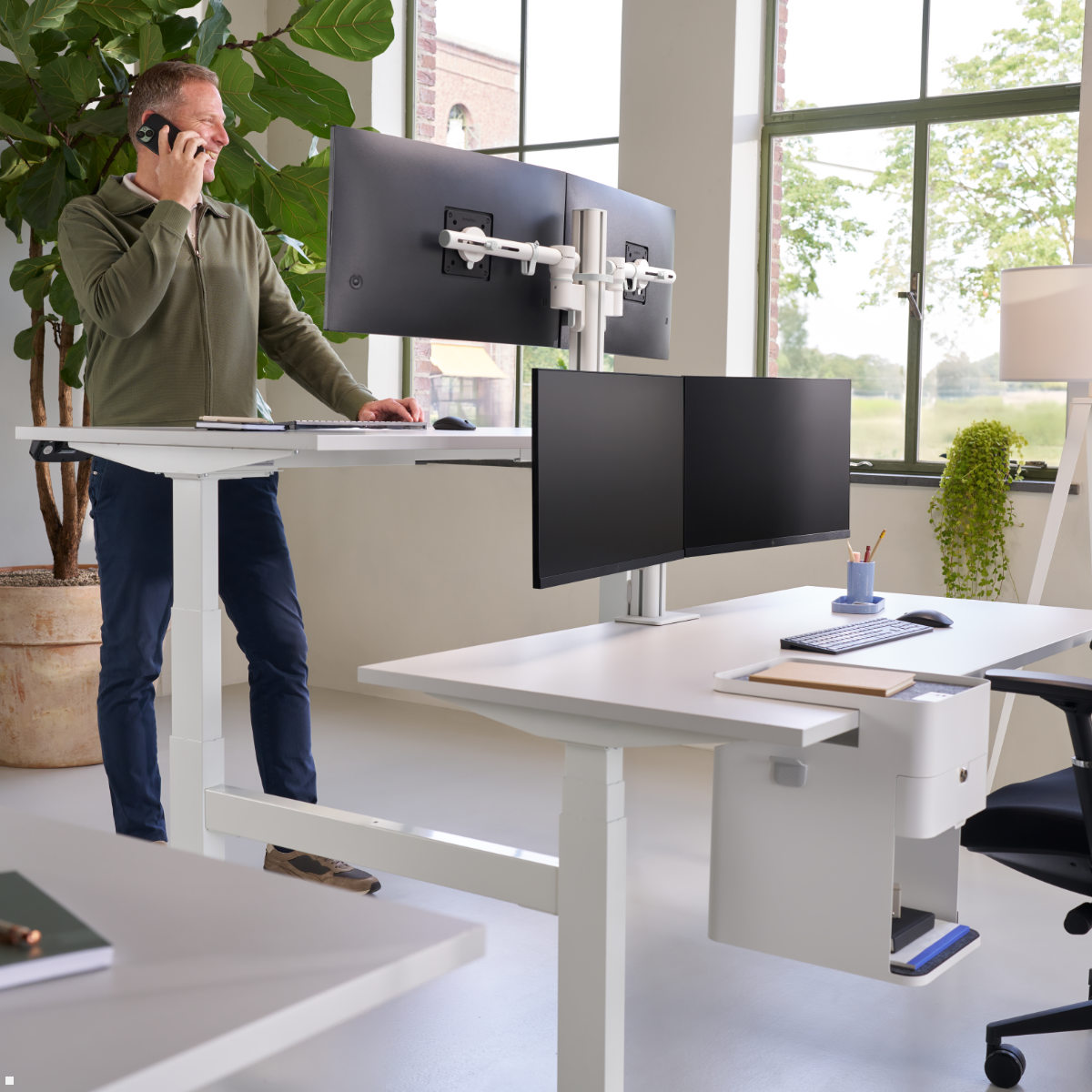

The Dataflex Viewgo modular monitor arm – Desk 220 is a flexible and ergonomic solution for dual-monitor workstations. The modular construction allows individual customization to suit different requirements and is especially suitable for modern office environments with changing setups.
The screens can be aligned independently and positioned ergonomically. The tool-free height adjustment along the sturdy column allows the optimal viewing height to be set quickly. In addition, versatile adjustment options such as tilt, rotation and swivel provide maximum flexibility in everyday work. The robust construction of the monitor mount ensures a secure hold for two monitors and supports an organized workspace design. At the same time, valuable desk space is freed up, resulting in a tidy and efficient working environment.
Technical details dual monitor desk mount:
- Monitor mount for 2 monitors
- Screen size: up to approx. 32 inches
- Load capacity: up to 9 kg per monitor
- Tilt: approx. +25° / -25°

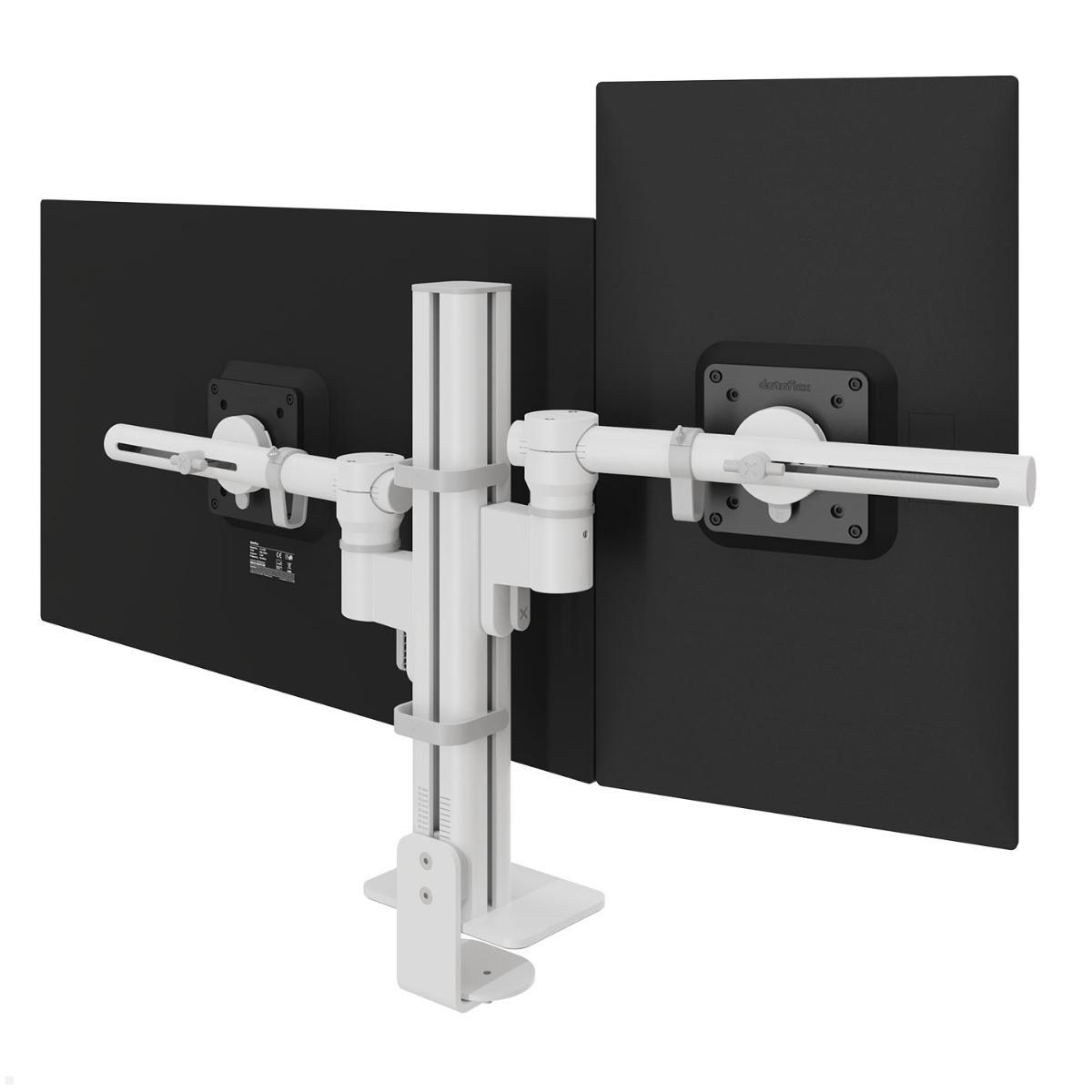

- Rotation: +90° / -90°
- Swivel range: +90° / -90°
- Arm rotation: up to 360°

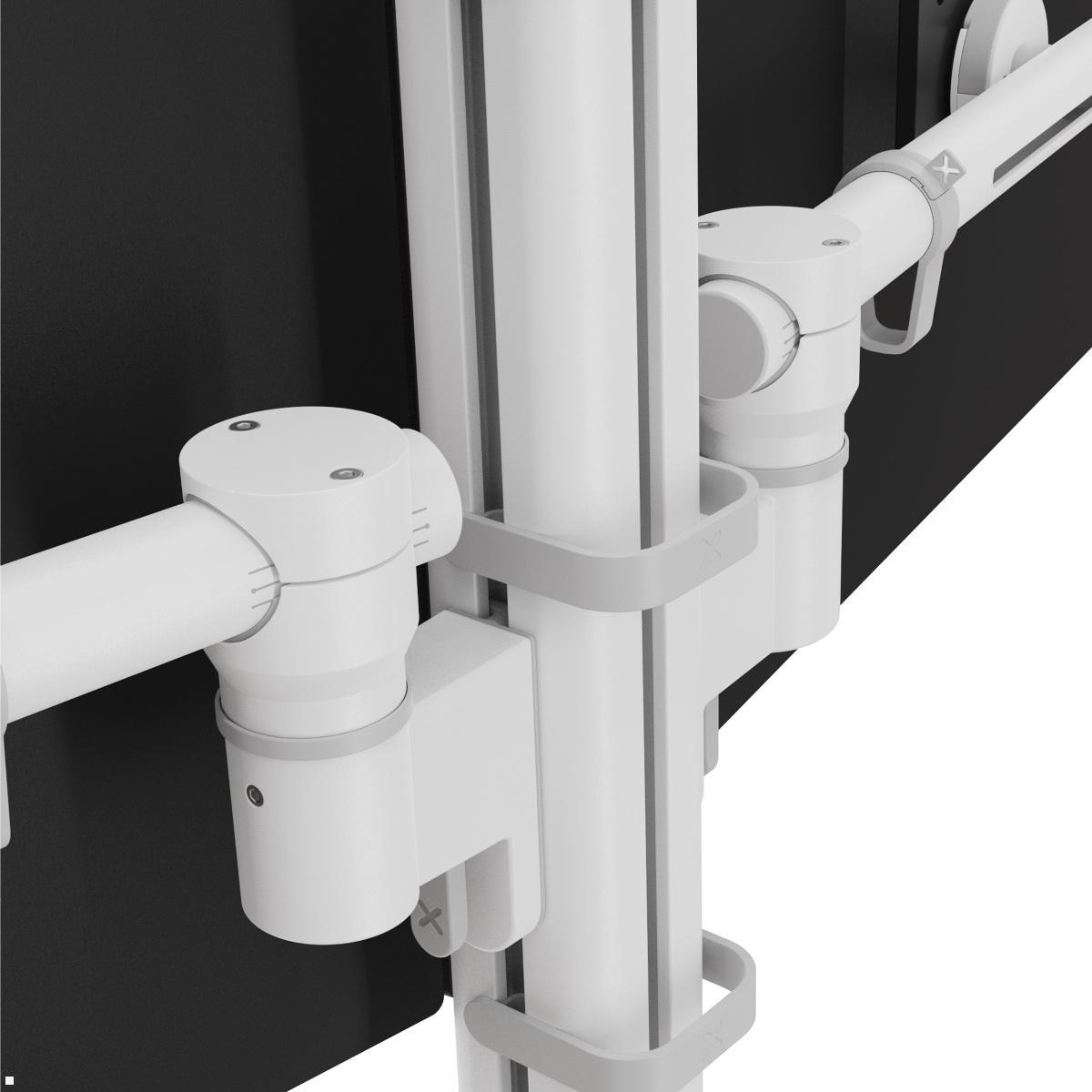

- Height adjustment: tool-free along the column
- Height adjustment range: approx. 200–210 mm
- Depth adjustment: flexibly positionable (depending on arm configuration)
- VESA quick-release as standard
- Compatible with VESA mount MIS-D 75x75 and 100x100 mm

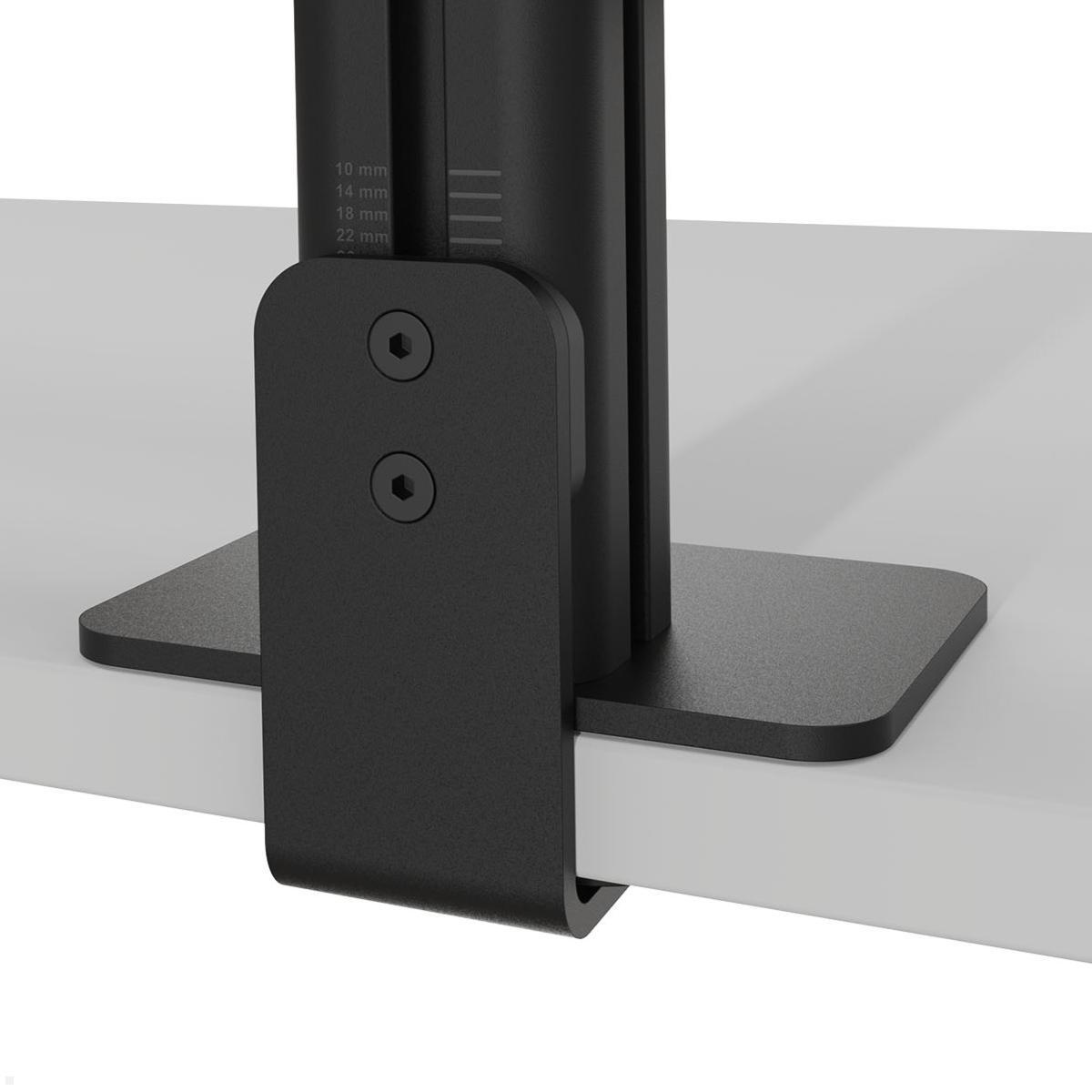

- Desk clamp mounting for desk thicknesses from 5 to 40 mm
- Through-desk mounting for desk thicknesses up to 50 mm
- Maximum width 770 mm per screen
- Maximum height 1,000 mm per screen
- Warranty up to 15 years after registration

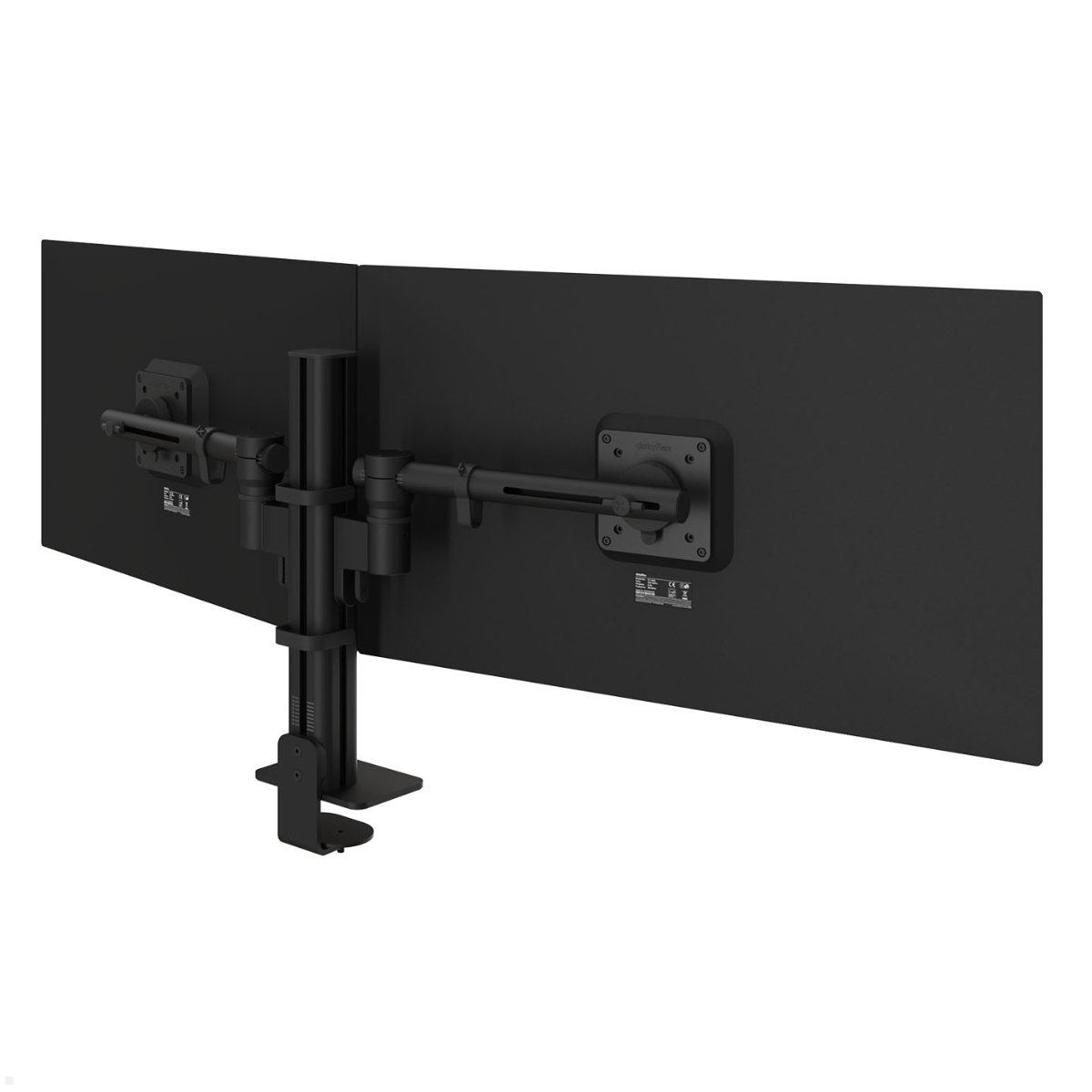

- Available in black (48.223) and white (48.220)
Does your monitor or display fit the monitor mount?
We will gladly check whether your monitor is suitable for this Dataflex Viewgo modular monitor mount. Simply provide your model (manufacturer + model number) in the comments field at the end of the ordering process. We will then check for you whether the monitor or display fits the monitor mount and, if not, we will contact you.
VESA Standard - Learn more about the VESA standard for monitor mounts!
| Product sheet: |  [pdf] |
|---|---|

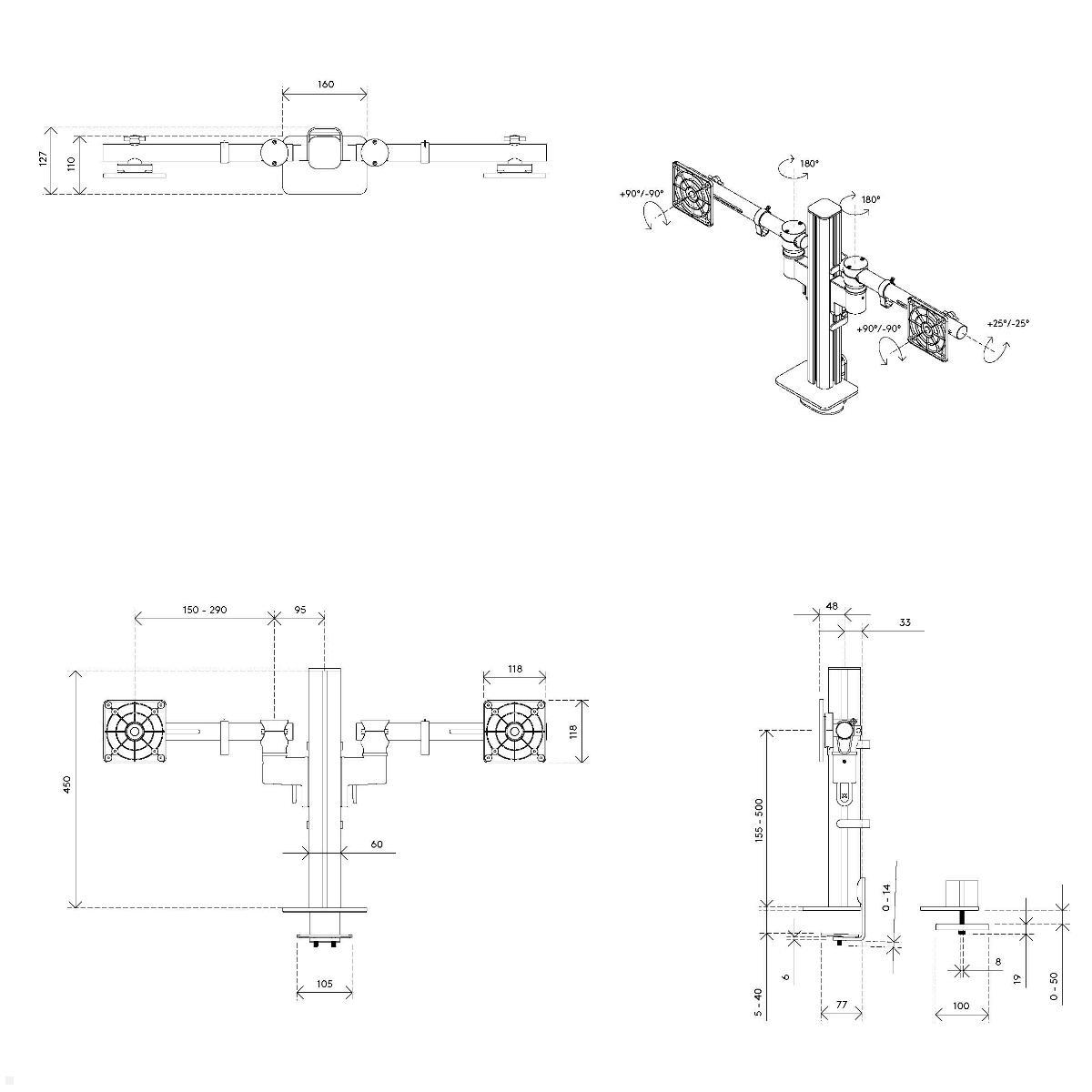

| Technical drawing: | [pdf] |
| Installation manual: | [pdf] |
| Warning/safety instructions: | [pdf] |
| Capacity: | 9 kg pro Monitor |
| Tilt: | +25°/−25° |
| Rotate: | 90° |
| Height range (mm): | 345 |
| Pivot: | 90° |
| Swivelling range: | +90°/-90° |
| Screen size: | bis 32'' |
| Thickness of table (mm): | Klemme: 5 - 40 mm, Durchtisch: 50 mm |
| Material: | Aluminium, Stahl |
| Special features: | Inklusive Tischklemme und Durchsteck-Befestigungssatz |
| VESA Standard: | 75x75mm, 100x100mm MIS-D (www.vesa-standard.com) |
| Packaging dimensions (LxWxH in mm): | 555x340x160 |
| Scope of delivery: | 1 x Dataflex Viewgo modular dual monitor mount | desk clamp | through-desk mount | installation material |
| Contains installation material: | + |
| Warranty: | 15 years |
| Manufacturer/Importer: | Dataflex International BV, Van Nassauweg 2-6, 2921 LX Krimpen a/d IJssel, Niederlande, info@dataflex.de |
| Inch size: | 19 inch, 20 inch, 21 inch, 22 inch, 23 inch, 24 inch, 25 inch, 26 inch, 27 inch, 28 inch, 29 inch, 30 inch, 31 inch, 32 inch |
| Mobility: | Drehbar, height adjustable , rotatable (pivot), swivelling, tilting |
| Mounting type: | desk - clamp, desk - drill screw fastening |
| Multi-monitor mount: | 2 monitors side by side |
| VESA (in mm): | VESA 75x75, VESA 100x100 |
If warning and safety instructions are to be observed for a product, these can be found in the respective installation instructions or in a separate PDF, depending on the manufacturer. Available documents for the product can be found in the available PDF files (see above).
Download area - catalogs, flyers, warranty conditions, ...
Questions & Answers
-
How many monitors does the Dataflex Viewgo support and what size is it for?
It is a dual-monitor desk mount for two monitors up to about 32 inches; load capacity up to 9 kg per monitor.
-
What adjustability does it offer?
Monitors can be positioned independently; tilt ±25°, rotation ±90°, swivel ±90°, and arm rotation up to 360°. Height adjustment is tool-free along the sturdy column, with a range of about 200–210 mm.
-
How do you adjust the height?
Height adjustment is tool-free along the column; the adjustable range is approximately 200–210 mm.
-
What about VESA compatibility and mounting options?
VESA quick-release standard is included; compatible with MIS-D 75x75 and 100x100 mm; desk clamp for desk thickness 5–40 mm; through-desk mounting up to 50 mm.
-
What are the maximum width/height per screen?
Maximum width per screen is 770 mm; maximum height per screen is 1000 mm.
-
What is the warranty?
Warranty up to 15 years after registration.
-
Can Dataflex check if my monitor fits?
Does your screen fit the monitor arm? We are happy to check whether your monitor is suitable. At the end of checkout, please provide the manufacturer and model number in the comments. We will check and let you know if it fits or not.
What advantages does a dual-monitor arm offer for the workplace?
A monitor arm for two monitors is one of the most effective solutions to sustainably improve productivity and ergonomics at the workplace. The Dataflex Viewgo modular monitor arm – Desk 220 enables the simultaneous use of two screens, thereby creating a significantly expanded workspace.
Especially in modern office environments, in the home office or for demanding tasks such as software development, graphic design or project management, a dual-monitor setup has become indispensable. Applications can be displayed in parallel, making workflows more efficient and avoiding unnecessary interruptions.
By using a monitor mount for two screens, the workflow is optimized because content remains directly within the field of view at all times. This leads to better concentration and a measurable increase in work speed.
Why is a modular monitor mount particularly flexible?
The modular construction of the Viewgo system makes this monitor arm for the desk particularly flexible and future-proof. Workplaces are constantly changing – new devices, additional monitors or adapted room concepts require a solution that can be easily adjusted.
A modular monitor arm can be expanded or reconfigured at any time. This makes the system suitable for both individual workstations and larger office structures with standardized solutions. Companies benefit from a long-term usable infrastructure that can be scaled without major effort.
How does a monitor arm improve ergonomics at the workplace?
An ergonomic monitor mount allows individual adjustment of the screen position in terms of height, distance and viewing angle. This supports a natural body posture that relieves the neck, shoulders and eyes.
The ability to align monitors precisely at eye level reduces poor posture and prevents long-term complaints. At the same time, flexible tilting and rotation minimize distracting reflections and ensure optimal visibility.
A monitor arm with height adjustment and tilt function is therefore a central component of an ergonomic workstation and actively contributes to health and performance.
How does a monitor mount create more desk space?
By using a desk-mounted monitor arm, valuable workspace is freed up. Monitors no longer stand on the desk but are positioned by the mount. This creates additional space for the keyboard, documents or other work tools.
A structured workspace makes organization easier and creates a clear work environment. Especially in smaller offices or where space is limited, a monitor arm for the desk is an efficient solution to optimize space.
For which use cases is a dual-monitor arm suitable?
A dual-monitor arm is suitable for a wide range of applications. In addition to classic office workplaces, it is often used in areas such as IT, design, administration or technical environments.
Through the combination of flexibility, ergonomics and space savings, the monitor arm is a versatile solution for modern workplaces with high demands on efficiency and structure.
